Self-Supporting Aerial Figure 8 GYTC8S Gytc8a Single Armor Outdoor Fiber Optic Cable

Product Description

GYTC8S/A Self-support Aerial FIG 8 Armored Outdoor Optical Fiber Cable
Fiber Counts: 2 cores -288 cores Structure: Figure 8 design, loose tube
CSM(Central Strength Member): Steel wire (or FRP)Span customized: 80/100/120/150/200m etc.Light-armored: Corrugated Steel Tape (aluminium tape optional)SJSA: Single Jacket Single Armor
Messenger: stranded steel wires 7*1.0mm
Drum Length: 2km,3km,4km as request
Application:
Self-supporting Aerial Installation
The 2-288 fibers are positioned in PBT loose tube filled with gel. Tubes (and fillers) are stranded around the central strength member(Steel or FRP) to form the cable core. The cable core is filled with water blocking compound and armored with corrugated steel tape(CST). Stranded steel wires support as the messenger. Finally, a figure-8 PE outer jacket is extruded.
Features:
1. Figure-8 design, easy for self-supporting aerial installation, reducing installation costs
2. Small size, light weight and soft, easy for installation
3. Hydrolysis resistant loose tube
4. Tube gel ensures critical protection of fiber
5. Corrugated steel tape(CST) enhancing moisture-proof Product Parameters

Fiber Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	5	6	5	6	8	10	12	18	24
Cable Diameter(mm)	9.2*16.2	9.6*16.6	9.7*16.7	10.2*17.2	11.5*18.5	12.8*19.8	14.0*21.0	14.3*21.3	16.2*23.2
Weight (Kg/km)	145	160	160	177	203	230	260	263	312
Fiber Type	G652D G655 G657 50/125 62.5/125
Steel wire(mm)	1.0*7
Tensile Strength(N)	Long/Short Term:1000/3500
Crush Resistance(N/100mm)	Long/Short Term:1000/2200
Bending Radius(mm)	Static/Dynamic:10D/20D
Temperature(ºC)	Storage /Operation:-40ºC~70ºC

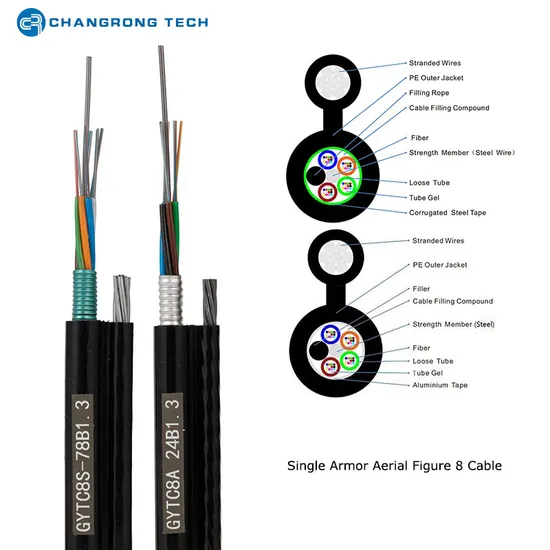

Cable Structure Design Detailed Photos
Certifications ISO9001, ISO14001, ISO45001 Certified Factory.
Own Lab certified by CNAS.
Workshop View Fiber Workshop:
Cable Workshop:
Packing & Shipping
Company Profile Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, located in Tianchang City, Anhui Province, very near to Nanjing and Yangzhou cities; with total investment of USD 306 million and area of 230,000 Sqm, is one of the high-tech enterprises specialized in R&D, production and sales of optical fibers and cables.
ISO9001, ISO14001, ISO45001 certified factory.
Equipped with 9 cutting-edge fiber drawing towers and 18 production lines, an annual production capacity of 15 million Fiber Kilometers, own lab certified by CNAS with advanced equipment intruduced from France, Japan & USA, Changrong Tech is devoted to achieving the best solutions for customers. Catalogue
Optical Fiber SM: G652D, G657A1, G657A2
Air Blown Micro duct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY, GYFTC8Y
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A, GYFTC8Y, GYXTC8S, GYFXTC8Y
Direct Burial Installation Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS
FTTH Drop Cable: GJXH, GJXFH, GJYXCH, GJYXFCH
Welcome to contact for more information!

---
