Newsmart 16-57oz Disposable Paper Bowls Take Away Paper Bucket Eco-Friendly Kraft Paper Bowl Packaging Salad Bowl Making Machine

Product Description

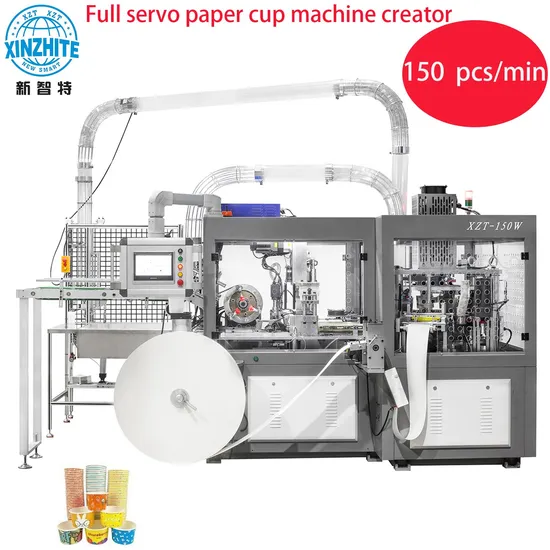

High-speed paper bowl making machine (unless paper bowl making, we also have paper cup forming machines, and paper cup packing machines...)
Product Description
1. XZT-150W features full servo-driven technology throughout the entire machine.
2. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion.
3. It replaced the market with almost a gear /chain transmission and cam design paper cup machine.
4. It provides flexibility, speed, affordable capital cost, and low maintenance.
Product Parameters

Model	XZT-150W Paper Bowl Machine
Bowl size	15-57oz (Max bottom130mm, top 150mm, height135mm) or other customized sizes
Material	170-380GSM single or double PE/ PLA coated paper(0.25-0.5mm thickness)
Speed	120-150pcs/min
Power supply	3 phase 380V 50Hz,44KW( running consumption is 20KW)
Air supply	0.6Mpa(running consumption 0.5Nm3/min)
Dimension(mm)	2760L*2160W*1925H
Weight	4500kgs

Detailed Photos

Loading table(about 1meter) with full cup fan paper for forming 3000-4000 cups (depends on
The thickness of the paper) at a time. Conveyor Fan Wall Paper Feeding by Step Motor.
The paper bowl bottom forming device uses the latest heating process to solve the traditional machine problem which must punch the bottom paper into the mold itself (making the mold bottom edge too thin that easy damaged).
Our mold chooses whole solid aluminum material made, simpler and more durable.
For more details,please contact us.
Sample Show
Our machines produce very well-detailed paper bowls with stronger sealing and beautiful knurling.
Workshop
The workshop is well organized and our technicians are responsible for every step of the assembly process.
Machine Maintenance
All our machines are CE certified.
EXHIBITION
The first time we attended the exhibition, our machines attracted many customers and received many orders.
We attend trade fairs regularly and look forward to meeting you in the near future. FAQ

Pre-sales issues _____
Q1- Is your company a factory or a trading company?
A1- We are a factory with more than 20 years of technical experience.
Q2- Where is your factory? How can I visit your company?
A2- Our factory is located in Wenzhou, Zhejiang province, China. It takes about 50 minutes from shanghai by plane(5 hours by train). All clients are warmly welcome to visit us.
Q3- What is the suitable material for your machines? What size of cup/bowl you can make?
A3- PE, double-PE Laminated cup paper, composite material, aluminum foil paper, etc. are suitable for our machines
We can make paper cups/bowls from 4oz-57oz.
Q4-What kind of machines do you produce?
A4. Full servo paper Cup making machine, full servo paper bowl-making machine, fully automatic intelligent cup packaging machine.
Q5- What information should I let you know if I want to get a quotation?
A5- Quantity, detailed size (top diameter, bottom diameter, and height), paper thickness&material.

Problems in sale _____
Q1- About payment term
A1- 30%T/T in advance, the rest paid before shipment.

Q2- Order tracking
A2- After the customer places an order,our company will send professional personnel to track the order and regularly report the production progress to the customer. After sales question _____
Q1- Warranty period of the product
A1- We offer one year warranty. And we also can dispatch engineers if conditions permit. Online instruction is also available.
Q2- About machine maintenance
A2-We will contact customers on a regular basis on how to maintain and maintain the machine. For domestic customers, we will have a master to provide on-site service.

---
