Basic Info.
Classification
Pre-Coating Laminating Machine
Application
Packaging Paper
Automatic Grade
Automatic
Membrane Material
PET Film
Plastic Film Mulching Modes
Hot Laminating
Transport Package
Wooden Carton
Production Capacity
20 Sets/Month
Product Description

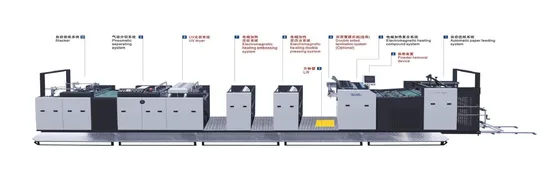

VOKEDA Fully Automatic Multi-functional high speed Film Laminating Machine VKD760A
Features
Any combination of powerful multi-functional configuration can solve various problems of laminating process!
1:Double-sided laminating (both sides are laminated at the same time)
2:Dust removal (remove surface dust and surface preheating, enhance surface brightness/mattity/and fit)
3:Double pressing (Enhanced surface compaction and fastness twice) (optional )
4:UV dryer(Lamination has strong fastness, especially to solve the problem of embossing, embossing and embossing of the large solid base film)
5:Chain knife (cutting of tailless film and high toughness film such as PET and aluminum foil film) (optional )
6:Hot knife (high speed) (Slitting of high toughness films such as tailless film and PET, aluminum foil film)(optional )
7:Coding (online coding) (optional )
8:Corona device (to solve the problem of low corona value, silk screen, paste box, hot stamping, etc.) (optional )
9:Static elimination device (excessive static electricity, large paper adhesion) (optional )
10:Embossing system: various embossing reflects the aesthetics of surface decoration!(optional )
Pre-stacker mechanism to realize non-stop paper feeding and receiving
Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation
High degree of intelligence, the whole machine is controlled by PLC and man-machine, and each part is frequency-converted and servo-linked to ensure speed synchronization and easy for one person to operate.
Electromagnetic heating system: the temperature rises and falls quickly, the heating roller adopts an electromagnetic heating system and a built-in oil heating system to make sure the temperature is uniform.
Driven by the synchronous belt, the equipment is more stable and the accuracy is better.
The equipment adopts servo edging, which has higher accuracy and more stability
The main pressure shaft is combined with electric pressure
Automatic lifting film, reducing labor intensity and safety
The main roller adopts double chain, no jump, high running stability, it is not easy to stretch after a long time, which affects the accuracy!
Applications
The VKD-A series is a high-speed pre-coating model launched by our company, which is suitable for posters, books, information albums, posters, color boxes, color box packaging, handbags, etc.
Technical parameters
| Item | Unit | VKD-590A | VKD-760A | VKD-1200A | VKD-1200A-L |
| Max laminating paper | mm | 590X760mm | 760X950mm | 1200*1000mm | 1200*1450mm |
| Min laminating paper | mm | 210*240mm | 240*270mm | 300*300mm | 340*340mm |
| Paper weight | gram | 80-500g | 80-500g | 100-500g | 100-500g |
| Overlap error | mm | +_2mm | +_2mm | +_2mm | +_2mm |
Laminating speed (Depending on the material, color and color block size of the printed product, the machine runs at different speeds) | m/min | oneside:0~80m/min Double side:0~60m/min(optional) | oneside:0~80m/min Double side:0~60m/min(optional) | oneside:0~80m/min Double side:0~60m/min(optional) | oneside:0~80m/min Double side:0~60m/min(optional) |
| Power(Different configuration, different power) | kw | 20kw | 22kw | 30kw | 30kw |
| Working power | KW/H | 18KW | 20KW | 20KW | 20KW |
| Paper feed height | mm | 1150 | 1150 | 1150 | 1150 |
| Paper stack height(including tray) | mm | 1050 | 1050 | 1050 | 1050 |
| Overall Dimensions | mm | 10500*1800*2000mm | 10500*1800*2000mm | 10500*2000*2000mm | 11500*2200*2000mm |
| Total weight | kg | 4000kg | 4500kg | 12500kg | 13500kg |
FAQ
1.What is VOKEDA TECHNOLOGY machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 5-10 days
4.What is the delivery time?----Within 5-10 days after got the payment.
5.Can vokeda TECHNOLOGY handle shipping for customers?----Yes.(Please provide us your requested destination port ,and we can check the shipping charge and arrange shipping for your order)
6.Does the package strong?----Yes, of course! All of our export package is enough strong with wooden case, all are confirmed with export packing standard.
7.How about after-sales service ?----my engineer can offer you traning for operating the machine .
8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.
9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.
10Do you have some machines in stock ?--- yes , we have .
11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before shipping.
12.What's the payment term?----T/T or western union
>>
