Wire Coiling Machine Cable Coil Winding and Meter Counting Machine

US$1,995.00-2,360.00 1 set (MOQ)

Basic Info.

Model NO.
WL-PXJM
Certification
CE
Model
Wl-Pxjm
Maximum Cable Width
190mm
Maximum Wire Diameter
13mm
Maximum Winding Speed
999 Revolutions/Minute
Maximum Coil Diameter
260mm
Winding Motor Torque
8.5n.M
Input Voltage
AC200-230V
Input Air Pressure
0.45-0.65MPa
Maximum Power
375W
Dimension
600*400*450
Weight
40kg
Transport Package
Wooden Case
Specification
100*45*80cm
Trademark
Crown
Origin
China, Jiangsu
HS Code
8479811000
Production Capacity
5-500 Laps/Minute

Product Description

Product description:
Automatic Wire Winding Machine with Counting Meter Feature Desktop Wire Twist Tie Machine with Digital Counter
Features:

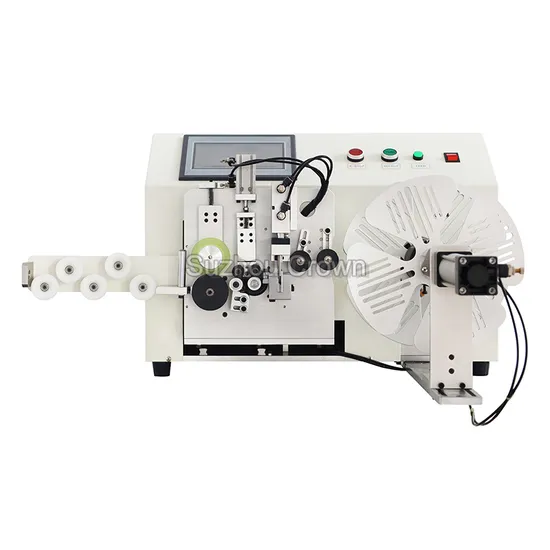

This is a semi-automatic wire winding and meter counting machine. It is suitable for coiling AC power cords, DC power cords, data cables, video cables, high-definition cables and other transmission cables.
Automatically arrange the cable neatly, high efficiency
Suitable for coiling AC power cords, DC power cords, data cables, video cables, high-definition cables and other transmission cables

Model WL-PXJM
Maximum cable width 190MM
Maximum wire diameter 13MM
Maximum winding speed 999 revolutions/minute
Maximum coil diameter 260MM
Winding motor torque 8.5N.m
Input voltage AC200-230V
Input air pressure 0.45-0.65Mpa
Maximum power 375W
Dimension 600*400*450
Weight 40KG

Packing & Shipping: For small and light products packed by cartons,for large and heavy products packed by wooden
Product show:
Coiling winding, meter number counting, without tying function Coil ID customizable
Wire coil winding with tying (binding), and meter number counting function
Machine processing samples:
Related products:
FAQ:
1.How to order?
Please contact my Email for much more details, you can place order with us directly
or through ****** online transcation after confirmation.
2.What's your payment terms?
We accept trade assurance order, T/T,L/C, western union, Paypal etc.
3.How long does the production time?
Generally 3~7 days, if there's customized model or other request will be adjusted.
4.How do you packaged the products?
Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.
5.What can you provide for us?
Our service
We provide:
· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
