1750mm Arms Servo Cutting Plotter - Precision Automatic Contour Cutting Plotter

Product Description

Arms Servo Cutting Plotter Automatic Sticker Cutting Machine
The ARMS servo motor is quieter and more efficient than a comparable stepper motor which is part of what makes it a professional's vinyl cutter. Servo motors are faster and more accurate but require more complex drive circuitry and positional feedback. To achieve this, servo motors maintain their torque rating at high speeds because they do not operate at maximum capacity, leaving power in its reserves. In addition to the back lit LCD, the NPC features illuminated buttons for easier reading. The ARMS servo motor makes it faster, quieter, more accurate and able to cut thicker material.
Quality Construction
SERVO ARMS vinyl cutters are constructed to withstand rigorous use and are built tough from the inside out. From the aluminum alloy frame and ABS end caps to the double ball bearing blade holders, it is built to last. MAC and Windows compatible with built in USB interface, the NPC machines are plug-n-play ready.
Tech information
• The plug-in driver allows cut from Illustrator, Corel Draw, AutoCAD directly
• High force cutting head with 4 wheels
• Strong metal construction, nice ABS sides
• Automatic contour cutting function
• Straight-line Speed: 50-960mm/s
• Curve speed: 0-600mm/s
• Motor& Driver: DC servo
• Motor power: 25watt
• Servo motor speed: 0-3500RPM
• 0-3000RPM time: < 20 MS(idle load); <1200 MS(working)
• Encoder signal: physical 1000line/ round, logical 4000line/round
• Force: 0-750g (3g/step)
• CPU: 64bit DSP 32MFlash
• Mechanical Resolution: 0.01254mm/pulse
• Repeating Precision: 0.082mm
Technical Parameters:

Model Name	ARMS-720NEW	ARMS-1400NEW		ARMS-1800NEW
Maximum Sheet Size	720mm	1400mm		1800mm
Maximum Cutting Size	630mm	1260mm		1680mm
Minimum Cutting Character	About 5mm2
Mechanical Resolution	0.02mm
Repeat Precision	0.082mm
Maximum Liner Cutting Speed	960mm/s
Maximum Cutting Force	750g
Cutting Control System	DC Servo
Motor Speed	0-3000RPM
CPU	64-DSP
Package dimensions	103*35*49CM	171*35*49CM		210*40*55CM

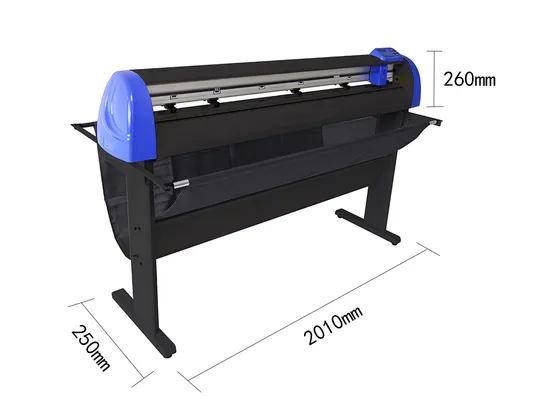

Actual dimensions	93*25*26CM	161*23*28.5CM		201*23*28.5CM
Gross/Net Weight	27.8kg/25.0kg	42.0kg/35.0kg		68.0kg/47.0kg
Connectivity	USB/RS-232
Software & Compatibility	DragonCut, compatible for Windows7,8,10(USB direct connection to the computer) Corel Draw/Illustrator Plug-in(SD direct connection to the computer)
Power Source	100V~240V,50/60Hz
Power	150W
Operation environment	Temperature: +5ºC - +35ºC/41ºF - 95ºF Humility:30%-75%
Stand & Pocket	Included	Included	Included

TRUE USB
This cutter offers a true USB - a feature usually offered only on cutters costing many hundreds or even thousands of dollars more. Send files directly to your ARMS cutter directly from Adobe Illustrator, Corel Draw, Inkscape or other software products that support vector graphics.

Highlight Features:
Automatic Laser registration for contour cutting function
Cutting head with 4 wheels
True USB - send files directly to the cutter from Adobe software and other applications that support Vector Graphics
Strong metal, precision ABS sides
All metal moving parts
Mac & PC compatible USB and RS-232 connection
Large LCD display & control panel for adjusting speed and cutting force
Plug and Play - simple installation
Cuts adhesive vinyl, heat transfer vinyl, cardstock, paint mask stencil, laminate, sandblast mask, low & high intensive reflective material
Servo motor for quiet and accurate performance
Shipment:
1) TNT/DHL/UPS for samples, Door-to-Door shipping service.
2) For batch machines, shipment is effected by Seaway ( FCL or LCL).
3) We are able to arrange shipping.It's also acceptable if buyers nominate their own shipping agent.
4) Delivery Time:3 -7 days for samples;10-20 days for batch goods. Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20,000.00.
Company introduction:
Hefei Gere-tech International Co.Ltd.Is a firm with 10+ years of histroy.We devote ourselves in R&D on signage and Sublimation industries.Our Refine brand cutting plotters and heat press are very popular in North America,Europe, Latin America, Asia and Africa.
We alway provide quality products, reasonable prices as well as best possible after-service!We offer quality guarantee.Our service time is weekly 7days x 15hours/day .
We have superior and steady sales + service staff, which is our biggest advantage among most Chinese competitors!
We promise!We guarantee!
"Gere-tech" is your correct and long-term buiness

---
