Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
After-sales Service
Special After-Sales Service Man
Transport Package
Wrap Film Packing to Load Into Container
Specification
pp and pe bottle blowing
Production Capacity
10sets/Month
Product Description
CHANGZHOU LOYALTY INDUSTRY CO.,LIMITED is specialized in Extrusion Blow Molding field. We provide blow molding machines, hollow moulds, auxiliary machines, special processing devices and project service for your production plans.

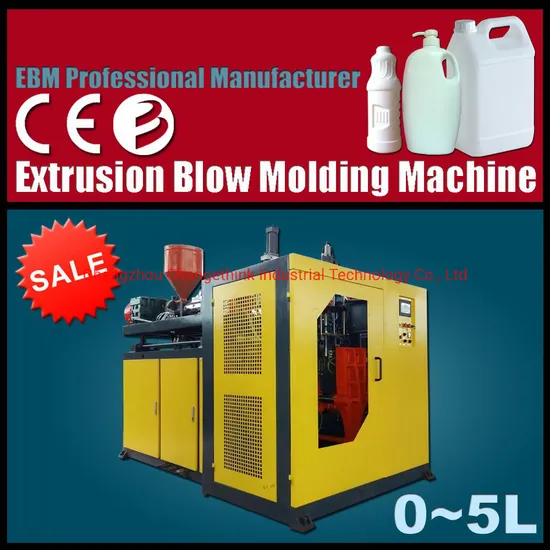

MODEL:LTY65-1
MACHINE FEATURES
| 1 | LTY65-1 is single station single head blow molding machine for 6L as maximum. |
| 2 | The output for common 5L bottle is 125 pcs/hour, daily output is about 3000 pcs. |
| 3 | High efficiency extrusion system is generally suitable for LDPE, HDPE and PP. |
| 4 | Adopt axial type translational clamping unit guided with linear rails for platen moving. |
| 5 | With two pneumatic cylinder for head lifting in balance, clean & easy for maintenance. |
| 6 | Optimized hydraulic system with mechanical shuttle valve for platen moving stability. |
| 7 | 100 point parison control with separate hydraulic source for better product quality. |
| 8 | Lubrication system, product clamping boards and scraps skid way are included. |
SAMPLES SUITABLE
CONFIGURATION LIST
| COMPONENTS | BRAND | ORIGIN |
| 50 POINT PARISON CONTROLLER | BAISU | CHINA |
| PARISON SERVO VALVE | REXROTH | GERMANY |
| PARISON SERVO TRANSDUCER | GEFRAN | ITLAY |
| PARISON CONTROL MODULES | GEFRAN | ITLAY |
| PLC | MITSUBISHI | JAPAN |
| TEMPERATURE CONTROL MODELS | HONGGE | TAIWAN |
| COLORFUL TOUCH SCREEN | WEILUN | TAIWAN |
| CONTRACTOR | SCHNEIDER | FRANCE/CHINA |
| AIR SWITCH | SCHNEIDER | FRANCE/CHINA |
| MID RELAY | OMRON | JAPAN |
| PROXIMITY SWITCH | RIKO | TAIWAN |
| INVERTER | DELTA | TAIWAN |
| OIL FILTER | DONGFANG | CHINA |
| OIL TUBE & JOINT | PACKER | U.S.A. |
| SEAL PARTS | DZ | TAIWAN |
| HYDRAULIC PUMP | HYTEK | TAIWAN |
| HYDRAULIC VALVE | HYTEK | TAIWAN |
| PNEUMATIC VALVE & CYLINDER | AIRTAC | TAIWAN |
| COMPRESSED AIR FILTER | AIRTAC | TAIWAN |
| LINEAR GUIDE RAILS | HIWIN | TAIWAN |
| HARD GEAR BOX | GUOMAO | CHINA |
| HYDRAULIC PUMP MOTOR | SIEMENS BEIDE | CHINA |
| EXTRUSION MOTOR | SIEMENS BEIDE | CHINA |
MACHINE DETAILS
SPECIFICATION LIST
MOULD SPECIFICATIONS
CHANGZHOU LOYALTY INDUSTRY CO.,LIMITED is specialized in Extrusion Blow Molding field. We provide blow molding machines, hollow moulds, auxiliary machines, special processing devices and project service for your production plans.
MODEL:LTY65-1
MACHINE FEATURES
| 1 | LTY65-1 is single station single head blow molding machine for 6L as maximum. |
| 2 | The output for common 5L bottle is 125 pcs/hour, daily output is about 3000 pcs. |
| 3 | High efficiency extrusion system is generally suitable for LDPE, HDPE and PP. |
| 4 | Adopt axial type translational clamping unit guided with linear rails for platen moving. |
| 5 | With two pneumatic cylinder for head lifting in balance, clean & easy for maintenance. |
| 6 | Optimized hydraulic system with mechanical shuttle valve for platen moving stability. |
| 7 | 100 point parison control with separate hydraulic source for better product quality. |
| 8 | Lubrication system, product clamping boards and scraps skid way are included. |
SAMPLES SUITABLE
CONFIGURATION LIST
| COMPONENTS | BRAND | ORIGIN |
| 50 POINT PARISON CONTROLLER | BAISU | CHINA |
| PARISON SERVO VALVE | REXROTH | GERMANY |
| PARISON SERVO TRANSDUCER | GEFRAN | ITLAY |
| PARISON CONTROL MODULES | GEFRAN | ITLAY |
| PLC | MITSUBISHI | JAPAN |
| TEMPERATURE CONTROL MODELS | HONGGE | TAIWAN |
| COLORFUL TOUCH SCREEN | WEILUN | TAIWAN |
| CONTRACTOR | SCHNEIDER | FRANCE/CHINA |
| AIR SWITCH | SCHNEIDER | FRANCE/CHINA |
| MID RELAY | OMRON | JAPAN |
| PROXIMITY SWITCH | RIKO | TAIWAN |
| INVERTER | DELTA | TAIWAN |
| OIL FILTER | DONGFANG | CHINA |
| OIL TUBE & JOINT | PACKER | U.S.A. |
| SEAL PARTS | DZ | TAIWAN |
| HYDRAULIC PUMP | HYTEK | TAIWAN |
| HYDRAULIC VALVE | HYTEK | TAIWAN |
| PNEUMATIC VALVE & CYLINDER | AIRTAC | TAIWAN |
| COMPRESSED AIR FILTER | AIRTAC | TAIWAN |
| LINEAR GUIDE RAILS | HIWIN | TAIWAN |
| HARD GEAR BOX | GUOMAO | CHINA |
| HYDRAULIC PUMP MOTOR | SIEMENS BEIDE | CHINA |
| EXTRUSION MOTOR | SIEMENS BEIDE | CHINA |
MACHINE DETAILS
SPECIFICATION LIST
MOULD SPECIFICATIONS
| ITEMS | SPECIFICATIONS |
| Target Product | 5L Jerry Can |
| Mould Cavity No. | 1 Cavity |
| Product Material | HDPE |
| Mould Design | Made According to Sample or Product 3D Drawing |
| Cavity Material | Steel S50C in Modulation |
| Scraps Blades Material | Steel S50C in Modulation |
| Mould Carrier Material | Steel S45C |
| Blade Hardness | 35~36 Hrc |
| Neck Ring Hardness | 58 Hrc |
| Cavity Surface Processing Method | Sand-blast with Reasonable Air Exhausting Design |
| Cold Water Runner Design | Separate Cooling Runners |
| Mould Structure | Main Cavity Mould + Scraps Auto-moving Device |
| Mould Lifespan | >1,500,000 Working Times |
PROJECT ITEMS OPTIONAL
| ITEMS | SPECIFICATIONS |
| Target Product | 5L Jerry Can |
| Mould Cavity No. | 1 Cavity |
| Product Material | HDPE |
| Mould Design | Made According to Sample or Product 3D Drawing |
| Cavity Material | Steel S50C in Modulation |
| Scraps Blades Material | Steel S50C in Modulation |
| Mould Carrier Material | Steel S45C |
| Blade Hardness | 35~36 Hrc |
| Neck Ring Hardness | 58 Hrc |
| Cavity Surface Processing Method | Sand-blast with Reasonable Air Exhausting Design |
| Cold Water Runner Design | Separate Cooling Runners |
| Mould Structure | Main Cavity Mould + Scraps Auto-moving Device |
| Mould Lifespan | >1,500,000 Working Times |
>>
