Universal Milling Machine Price List X6132 Machine Milling Horizontal Milling Machine for Metal

Product Description

Product Description
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling,Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold,equipment, instrumentation and other industries.
Product Parameters

Specifications	Units	X6132	X6132B	X6132BH
Table size	mm	320×1325	320×1600	320×1600
Max. longitudinal of table travel(manual/automatic)	mm	700/680	900/680	900/880
Max. transverse travel of table (manual/automatic)	mm	255/240	255/240	255/240
Max. vertical travel of table (manual/automatic)	mm	320/300	320/300	410/390
Max rotary angle of table		±45°	±45°	±45°
Distance between spindle axis and column guide way	mm	30-350	30-350	30-440
Spindle speed step		18	18steps	18
Spindle speed range	r.m.p	30-1500	30-1500	30-1500
Feed range of table travel		18	18steps	18
Main motor power	kw	7.5	7.5	7.5
Rapid motor power	kw	2.2	2.2	2.2
Overall dimension	mm	2294×1770×1610	2294×2050×1610	2294×2050×1790
N.W./G.W.	kg	2650/2950	2740/3040	2940/3240

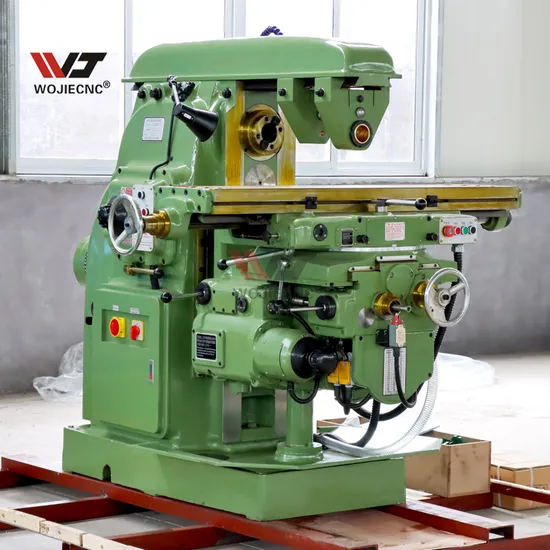

Detailed Photos
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
