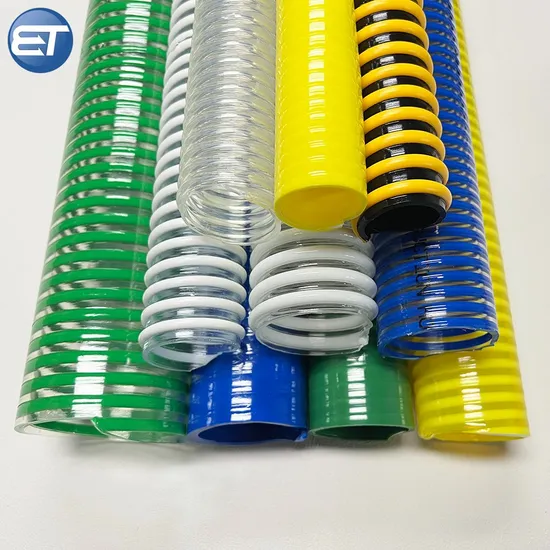

Corrugated PVC Suction Hose Green Grey Yellow Flexible Helix PVC Suction Hose 1 2 3 4 5 6 8 10 Inch Plastic Spiral PVC Duct Hose for Water Delievery

US$0.20-2.60 100 Meters (MOQ)

Basic Info.

Model NO.
suction hose
Type
Thermoplastic Pipe
Color
Blue, Orange, Yellow, Red, etc
Hollow
Hollow
Shape
Round
Usage
Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Thickness
3mm-12mm
Length
10m/20m/30m/50m
Working Pressure
3bar-10bar
Working Temperature
-5ºC - 65ºC
Features
Abrasion and Chemical Resistant, Impact and Crush
Transporting Medium
Liquid, Powder, Granules
Quality Grade
No Toxic Grade
Connection
Camlock, Kc Nipple, Hose Mender, Bauer, Storz, Pin
Application
Industry, Agriculture and Construction
Reinforced Material
Integral Helix Rigid PVC
Transport Package
Woven Plastic Cloth Wrapped
Specification
3/4"-16"
Trademark
ET
Origin
Shandong, China (Mainland)
HS Code
39173900
Production Capacity
2000tons/Year

Product Description

Corrugated PVC Suction Hose Green Grey Yellow Flexible Helix PVC Suction Hose 1 2 3 4 5 6 8 10 INCH Plastic Spiral PVC Duct Hose For Water Delievery
ID OD WP BP W/A COIL
in mm mm bar psi bar psi g/m m
3/4 19 23 6 90 18 270 230 30
1 25 29 6 90 18 270 290 30
1-1/4 32 38 6 90 18 270 400 30
1-1/2 38 46 6 90 18 270 650 30
2 50 56 5 75 15 225 700 30
2-1/2 63 71 4 60 12 180 1170 30
3 75 83 3 45 9 135 1300 30
4 100 110 3 45 9 135 2300 30
5 125 137 3 45 9 135 3300 20
6 152 166 2 30 6 90 5500 10
8 200 214 2 30 6 90 6300 10
10 254 270 2 30 6 90 10000 10
12 305 329 2 30 6 90 18000 10
14 358 382 2 30 6 90 20000 10
16 408 432 2 30 6 90 23000 10
Q: What is your standard length per roll?
A: The standard length is 100m, we can also make any length as customers' requirement, like 10m/15m/20m/30m/50m.
Q: What is the minimum and maximum size you can produce?
A: The minimum size is 3/4"-19mm, the maximum size is 16"-406mm.
Q: What is the working pressure of your layflat hose?
A: The maximum working pressure of our layflat hose is 10bar.
Q: Is your layflat hose UV resistant?
A: Yes, our layflat hose is UV resistant.
Q: What is the service life of your layflat hose?
A: The service life is 2-3 years, if it is well preserved.
Q: What is the MOQ of your layflat hose?
A: We can accept orders of any quantity.
Q: Can you make customer logo on the hose and packaging?
A: Yes, we can make your logo on hose body and packaging and it is free.
Q: What quality guarantee you can supply?
A: We tested the quality each shift, once quality problem, we will replace our hose freely.
