Winder Roll for Winder Machine

US$3,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Winder Roll
Certification
ISO 9001:2000, CE, ISO14001;ISO45001;ISO50001
Surface Treatment
Rubber or Hard Chrome or Tungseten Carbide
Manufacturing Process
Casting
Material
Carbon Steel
Speed
100-2600mpm
Transport Package
Wooden or Steel Frame Package for Shipping
Specification
12000mm*2200mm *2200mm
Trademark
Daxing
Origin
China
HS Code
8439990000
Production Capacity
6000rolls/Year

Product Description

Company Profile Who we are?
Over 40 years of experience in making rolls for Paper making machinery industry. But we don't just manufacture rolls for using in Paper Production, we also have rich background in Film stretching lines, Non-woven production lines.
Roll for High speed culture paper machine
Roll for High speed board paper machine
Roll for High speed tissue machine
Roll for Pulp machine
Roll for High speed reel
Roll for High speed rewinder machine Our Advantages Our strength:
Max roll/cylinder face length 11900mm
Max roll/cylinder OD 2000mm
Max balancing speed 3000m/min( Roll for Rewinder machine) Certifications General System certification:
ISO9001:2015
ISO14001:2015
ISO45001:2018
ISO50001
The following enterprises periodically audit our company:
Valmet

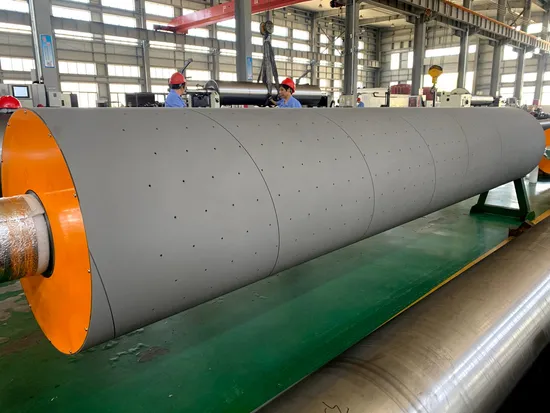

Andritz Winder roll used in the winder machine , that have front and back roll . The sureface with hard chrome or tungsten carbide .
Winder Roll Specification:
Diameter Range:
φ400-1200mm
Maximum Face Length:
14000mm
Shell Material:
seamless steel pipe or rolled and welded steel plate
Surface type:
plain or hole or grooved
Coating:
hard chrome or tungsten carbide
Journal Material:
Forged 42CrMo; Cast Steel or Nodular Casting Iron
Bearing housing:
Gray Casting Iron or ZG 35 or Nodular Casting Iron
Bearing brand:
Base on customer demand
Connection type:
Flanged Joint

Contact us with more details .
