| Negotiable | 1 Set (MOQ) |
| Feature |

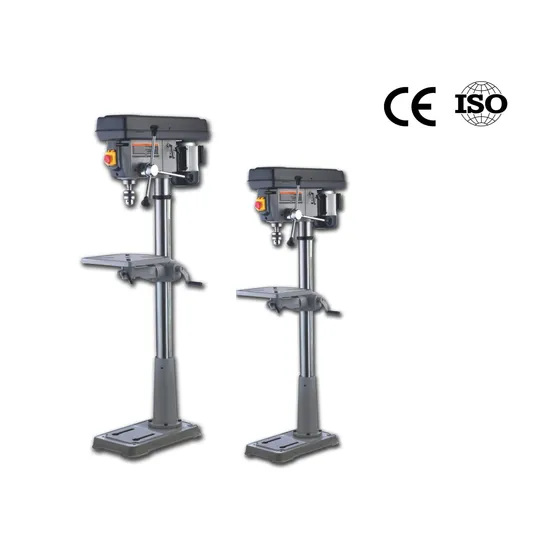

| 16mm (5/8'') max. chuck capacity. 380mm swing. 12 spindle speeds. Optional chuck guard and micro switch for CE requirement. |
| Model | DP38016F |
| Drill capacity | 20mm |
| Chuck capacity | 16mm |
| Swing | 15" (380mm) |
| Spindle taper | MT2 |
| Speed range (50Hz) | 12 (180-2740rpm) |
| Speed range (60Hz) | 12 (250-3100rpm) |
| Spindle travel | 80mm |
| Column diameter | 73mm |
| Rack & pinion | Yes |
| Base size | 450x270mm |
| Table size | 305x305mm |
| Motor | 600W |
| Overall height | 1635mm |
| N.W./G.W. | 64/69kg |
| Packing size | 1430x510x256mm |
| Quantity for 20GP | 160pcs |
| Standard Accessories | Optional Accessories |
| Drill chuck | Copper motor |
| Wrench set | Chuck guard |
| Aluminium motor | Emergency stop |
| Keyless drill chuck | |
| Vice |
