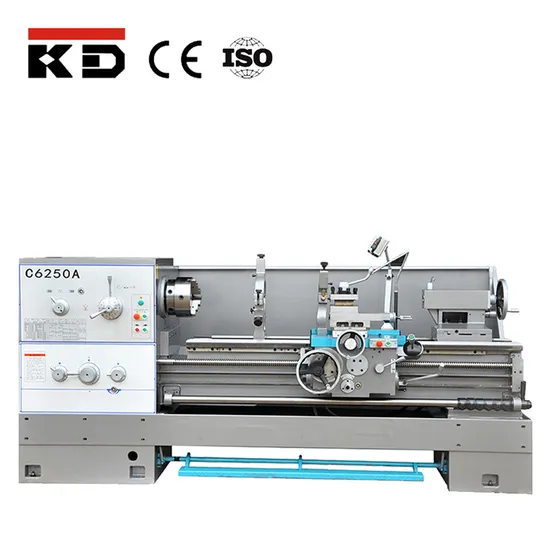

Cutting Metal Manual Lathe with Model No.: C6250A and 500mm Swing Over Bed

US$4,438.00-4,850.00 1 Set (MOQ)

Basic Info.

Model NO.
C6250A
Guide Rail
Hard Way
Tool Holder
4-Way Tool Station
Power Source
Manual
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Swing Over Bed
500mm
Spindle Bore
80mm
Spindle Nose
D8
Range of Speed
36-1600rpm
Transport Package
3600X1300X1800mm
Specification
3000x1100x1380mm
Trademark
kaida
Origin
Zhejiang
HS Code
8458190000
Production Capacity
1200sets/Year

Product Description

Horizontal C6250A High Accuracy Turning Cheap Lathe Machine
Product Description
MODELS
C6250A
CAPACITY

Max.swing over bed
Ф500mm
Max.swing over carriage
Ф310mm
Max. swing over gap
Ф720mm
Distance between centers
1000/1500/2000/3000mm
Max turning length
850/1350/1850/2850mm
SPINDLE

Spindle nose
D8
Spindle bore
Ф80mm
Taper bore of spindle
M.T.NO.7
Steps of spindle speed
12
Range of spindle speed
36~1600rpm
FEED

Range of longitudinal feeds
0.063~2.52 (0.023″~0.937″)mm
Range of cross feeds
0.027~1.07(0.010″~0.404″)mm
RAPID TRAVEL

Longitudinal
4500mm/min
Cross
1900mm/min
THREAD RANGE/ NUMBER

Metric pitch threads
1~14mm/ 22
Whit-worth threads
28~2 T.P.I/ 26
Module threads
0.5~7M.P/ 18
D.P.Threads
56~4 D.P/24
TAILSTOCK SLEEVE

Taper bore
M.T.NO.5
Max travel
150mm
External diameter
Ф75mm
OTHERS

Size of tool shank
25×25mm
Max travel of cross slide
340mm
Max travel of top slide
145mm
Main motor power
7.5kw (10HP)
Overall dimensions(L×W×H)
2500/3000/3500/4500×1280/1070×1380mm
Net weight
2900/3150/3400/3750kg
