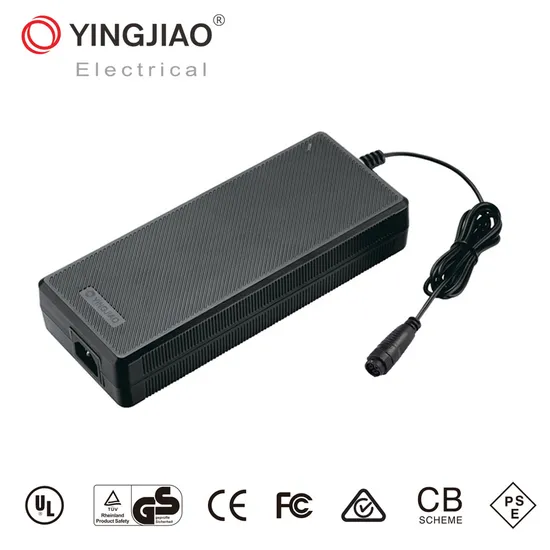

250W Lithium Battery Charger for E-Bike, Sightseeing Car, Cleaning Robotics, etc

Product Description

We are a professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, etc.
Application: e-Bike,Sightseeing car,Cleaning robotics,etc
We are a professional manufacturer of switching power supply / adaptor, laptop power adaptor, AC/DC power adaptor, both wall mount adaptor and desktop types.
Model: YS250 series
Rated Power: 300W max.
Universal Input: 100-240V AC 50/60Hz
Sample Output Specifications:
Other output voltage and current also available
Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
With PFC or without PFC optional
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
DATA:

Model:	YS250
Power:	250W max.
Input:	100-240VAC, 50/60Hz
Output Voltage:	12-48V
Output Current:	0.1-18A
Input current:	4A max.
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	1.5mA Max. at 264VAC input
Energy Efficiency Level VI :	CoC 5 / DoE 6 / CEC VI
No Load Power Consumption :	<0.15W
Protections:	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	EU,US,UK,AU etc. type according to customer's choice
Certificates and approvals:	UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25ºC ambient
Life:	3-5 years alternative
Dimension:	238*98*45mm
Weight:	1350g
Packing:	20PCS/CTN,42.5*42*20cm

DETAILS:

Model:	YS250-1201800	YS250-1501500	YS250-2001200	YS250-2401000	YS250-3606900	YS250-4805200
DC Voltage:	12V	15V	20V	24V	36V	48V
Rated Current:	18A	15A	12A	10A	6.9A	5.2A
Current Range:	0-18A	0-15A	0-12A	0-10A	0-6.9A	0-5.2A
Rated Power:	216W	225W	240W	240W	248.4W	192W
Ripple & Noise(max.):	120mVp-p	150mVp-p	200mVp-p	240mVp-p	240mVp-p	300mVp-p
Voltage Tolerance:	±5%	±5%	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%	±5%	±5%
Efficiency:	89%	89%	89%	89%	89%	89%
Setup,Rise,Hold up time:	1.5 second max./40 MS max./15 MS max. at 115VAC input and output max. load.
PF	>0.95 230V AC FULL LOAD
HI-POT	3000V AC 60S 5mA

---
