US$25,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Transport Package
Wooden Case
Product Description
Windows XP OS, easy to use
Embedded 3D CAD/CAM (option), prepareprogram in parallel with cutting
The maximum capacity of program files is 512KB
Multi-cuts, best surface finish Ra:1.0μm
Advanced generator, high cutting speed
Plenty of corner strategy
High rigidity design, good precision consistency
Adaptive dynamic wire tension control
| Specification |

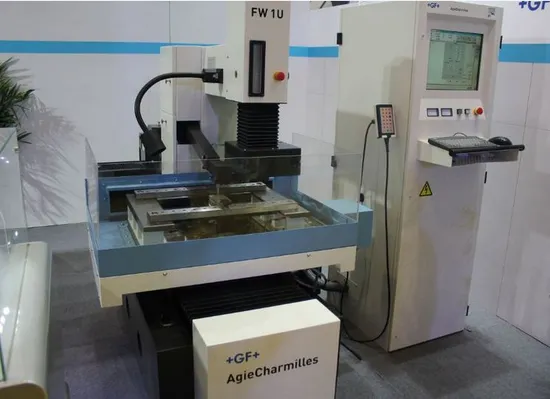

| Model | | FW1U | FW2U | FW3U |
| Machine |
| X,Y,Z travel | mm | 350×320×150 | 500×400×250 | 630×500×350 |
| U,V travel | mm | ±18 | ±18 | ±22 |
| Cutting degree | °/mm | ±10/80° | ±10/180 | ±10/250 |
| Wire diameter | mm | 0.12-0.20 | 0.12-0.20 | 0.12-0.20 |
| Machine size | mm | 1625×1225×1730 | 1790×1715×2050 | 2310×1940×2408 |
| Controller size | mm | 935×685×1865 | 935×685×1865 | 935×685×1865 |
| Machine weight | kg | 1810 | 2680 | 3500 |
| Working tank |
| Workpiece size | mm | 630×400×200 | 800×500×300 | 930×650×400 |
| Loading | kg | 300 | 600 | 800 |
| Worktable size | mm | 650×420 | 800×500 | 930×650 |
| Working tank size | mm | 960×640×120 | 1200×740×150 | 1360×930×150 |
| Working fluid tank |
| Filter fineness | μm | 10 |
| Volume | L | 50 |
| Pulse power |
| Max cutting speed | mm2/min | 180 |
| Best roughness | μm | ≤1.0 |
| Control system |
| Hardware | | Industrial PC |
| Communication interface | | USB,LAN,RS232 |
| Axis control | | 4 axis simultaneous |
| ISO code | | G and M code |
| Language | | Chinese-English- Spanish- Portuguese-Russia |
>>
