Highly Efficient Machine for Weaving Fiberglass Mesh

Product Description

Product Description
Highly Efficient Machine for Weaving Fiberglass Mesh
Fiberglass Mesh Machine a) This machine model is our latest development. It is designed at max width 2400mm, as so, it can produce two rollers , every at 1m. And the production efficiency will be greatly improved . Another the 2000mm width mesh will be cut automatically along with the weaving process.
b) Another after this new improvement, the cross fiberglass feeding will be more faster.
c) For some key and important part ,like as sword scalp plate and needle row , we will exactly make sure every manufacturing procedure to required quality.

Mesh Size	4x4mm, 5x5mm,6x6mm
Width :	1000mm/2000mm/2400mm( 2 rollers , every 1000mm )
Length	50m,100m, and any length required
Speed :	90-140 times/min
Production Capacity	70-80sqm/h
Motor power	1.5KW
Overall dimension	4.2x1.8x1.4m (2.4m width)
Weight	2.0 tons (2.4m width)

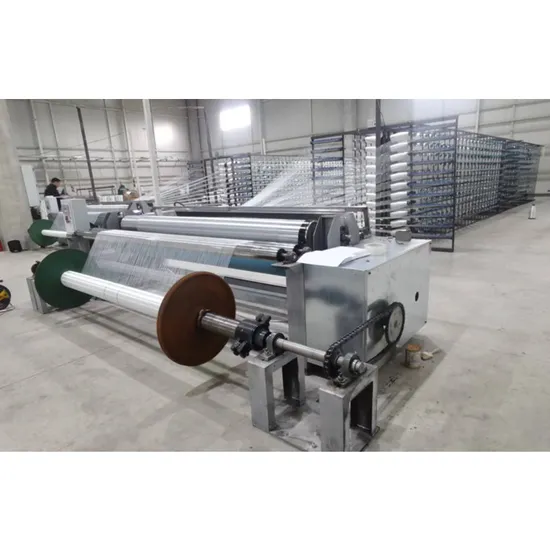

Warping Machine
a)Through this machine, the fiberglass line yarn on the pay off will be rolled on a roller, which will save workshop space.
b) In front of every pay off, we will comply with one tension-er, which will control the line fiberglass winding tension.
c) With automatic alarm and shutdown function of broken wire
d)With automatic counting and shutdown function.

Width :	1000mm/2000mm/2400mm
Length:	0-10000m
Speed :	1000-1300m/hour
Motor power:	4.0KW
Overall dimension :	8.0x4.0x1.8m (2.4m width)
Weight :	1.8 tons (2.4m width)

Glued and Coating Machine
a)The coating line can produce the fiberglass mesh with max width at 1000mm,which adopts vertical type and can avoid the mesh hang down because of self-weight .At same time,the coating device adopts the structure of the air pressure to let the glue be coated more uniform and make the mesh joint better, and save the glue. b)Our drying baker adopts type is different from the resistance wire. It can heat the mesh in circle and avoid the mesh burned . It is more important that the consumption power is less . c)The heating temperature can be controlled in the control panel,which can ensure every part of fiberglass mesh will be the same heat. Of course the finished mesh quality will be very good. Not like the electricity, this part is in high temperature while that parts is in low temperature. d)We have a store cloth unit, which can make sure the machine is not stopped when the fiberglass mesh is load-off. The cloth store unit can store about 30m mesh. e)Our production capacity can reach 1300-1500m each hour.

Width :	1000mm/1200mm/2000mm or customized
Speed :	1300-1500m/hour(1.0m width)
Total power	10.0KW(1.0m width)
EngergyConsumpition	about 10.0cbm (1.0m width)
Weight	9.8 tons (1.0m width)

Detailed Photos
Packaging & Shipping
Certifications
Company Profile
Anping Wanzhong Wire Mesh Products Company entered the wire mesh industry in 2012, specializing in the manufacturing of various types of Fence Mesh Welding Machines, Reinforced Mesh Welding Machines, Automatic Construction Mesh Welding Machines, Breeding Mesh Welding Machines, Chain Link Fence Machines, Nail Making Machines, Wire Drawing Machines, Barbed Wire Machines, Razor Barbed Wire Machines,etc.
Wanzhong Company has its own professional R&D team,customized design and production can be carried out according to the special requirements of customers,and has already won fifteen national patents until January 31,2022. It has successfully passed ISO9001-2008,CE certification and SGS certification,and it is recognized as a national high-tech enterprise by our government,and our company credit rating is "AAA".
Our machines have already exported to more than 50 countries, including USA,Russia,Algeria,Malaysia,the United Arab Emirates, Kuwait, Yemen, Oman, India, Uzbekistan, Kazakhstan, Iraq, Mexico, Tunisia, Kenya, Tanzania and Egypt.
Wanzhong Company has its own professional and experienced after-sales service team, 365 days 24 hours to provide you with the most professional and intimate installation, guidance and maintenance services.

---
