58mm Low Voltage Brushless Motor for Versatile Application Needs

Product Description

1. Product Type

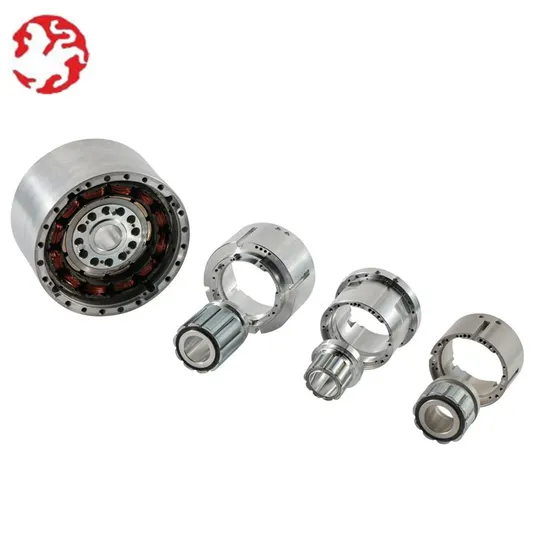

Discover the unparalleled efficiency of our 58MM 200W 48VDC Brushless Frameless Motor! Tailored to meet your unique application needs, this motor offers customizable encoders for precision and adaptability.
Excel with our high-end motor solutions designed for a spectrum of sophisticated applications. From cutting-edge industrial robots, and agile AGVs to smart factories, precision CNC machines, and advanced 3C electronics, our motors redefine versatility.
2. OEM & ODM Services
3. Our Remarkable Advantages:3.1. A highly skilled and innovative R&D team,guaranteeing groundbreaking and dependable solutions,
3.2. Prioritizing reliability and strict quality control to uphold excellence.
3.3. Experience swift delivery with short lead times for standard products, usually around one week.
3.4. Offering cost-effective solutions paired with competitive pricing to maximize value.
3.5. Certifications: ISO9001, CE; all our products comply with stringent RoHS standards, ensuring quality and safety.Certification: ISO9001, CE; and our products adhere to RoHS requirements, underpinning our commitment to quality.
3.6.Ensuring peace of mindwith a comprehensive one-yearwarranty under conditions of regular and normal use.
4. Product Features
4.1. Engineered with a state-of-the-art 5-pair pole scheme for optimal performance and efficiency across the entire series.
4.2. Compact and leading the industry, our product size offers unmatched space efficiency.
4.3. Advanced rotor with embedded magnetic steel, ensuring stability and eliminating detachment risks.
4.4. Seamlessly compatible with diverse encoder types, including our proprietary in-house encoders, to deliver peak performance.
Providing unmatched advantages that set us apart from the competition.
4.5. Available in elegant silver and striking black finishes, with a refined focus on sleek black.
5. Technical Indicators

Technical indicators
Rated output power	200	W
Number of poles	10	P
rated voltage	48	VDC
Rated speed	3000	r/min
Maximum speed	3600	r/min
Rated torque	0.64	N.m
Instantaneous maximum torque	1.92	N.m
Rated Current	5	A(rms)
Instantaneous maximum current	15.4	A(rms)
Line back EMF	8.36	V/krpm
Torque coefficient	0.131	N.m/A
Moment of inertia	without	Kg.sq.m.10-4
Line resistance	0.7	ohm
Line inductance	1.36	mH
Brake rated voltage	without	VDC
Brake rated power	without	W
Brake static torque	without	N.m
Brake moment of inertia	without	Kg.sq.m.10-4
Weight	0.27	Kg
Feedback element	Optional
Temperature sensor	NC

6. Functional Features

Working hours	Continuous
Heat resistance	Class F
Body color	/
Cooling method	Natural cooling
Vibration level	V15
Connection method	Direct connection
Installation method	Flange installation
Excitation method	Permanent magnet
Protection method	Fully enclosed ,self-cooling IP54 (except the pass-through parts of the axle)
Rotation method	Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft

7. Exterior Design
8. Servo Motor Wiring Definition
9. Company Profile
10. Development History
11. Motor Overview
12. Certificate and Patent Display

---
