| US$10,600.00-11,000.00 | 1 Set (MOQ) |
| ZHONG SHAN CHUANGYUAN POWER EQUIPMENT.,LTD | ||

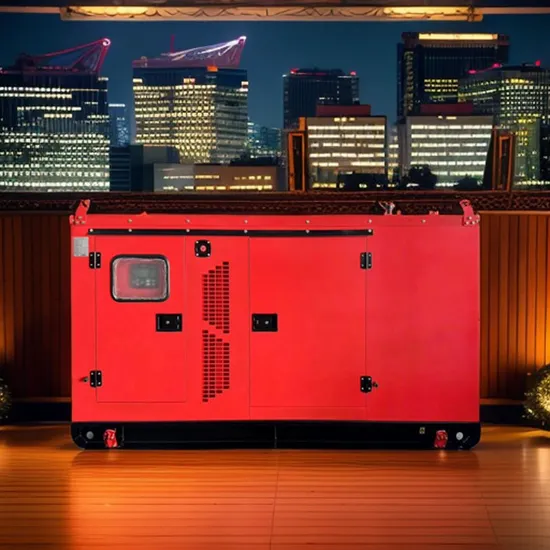

| Industrial generator set technical Sheet | ||
| Genset Model | CYGF-CK90-50P-S | |
| Genset Output(Kw/Kva) | 90/112.5 | |
| Rated speed (r/min) | 1500 | |
| Rated Voltage(V) | 400 | |
| Rated frequency(Hz) | 50 | |
| Ranted current(A) | 162.4 | |
| Power factor( Cos φ) | 0.8(lagging) | |
| Number of phase/Lines | Three phase four wire | |
| Controller brand | SmartGen | |
| Switch brand | CHINT | |
| Battery | 2*120Ah | |
| Industrial silencer with flexible connects | YES | |
| Fuel tank | YES | |
| Test report, Drawing , Manuals | YES | |
| Silent Genset weight(kg) | ≈2.5T | |
| Silent Genset size(LxWxH)mm | ≈3200*1100*1750 | |
| Engine | Model | 6BTA5.9-G2 |
| Type | Four stroke, in-line, water cooling, pressurized air cooling | |
| Prime Output(kW) | 104 | |
| standby output(kW) | 116 | |
| Cylinder/Bore/Stroke | 6/102/120 | |
| Displacement(L) | 5.9 | |
| Compression ratio | 17.3:1 | |
| Oil capacity(L) | 16.4 | |
| Coolant capacity(L) | 11 | |
| Speed regulation mode | Electrical governor | |
| Starting mode | DC24V electric start(Battery) | |
| Cooling mode: | Closed fresh water circulating cooling | |
| Firing sequence(From the free end) | 1-3-4-2 | |
| Crankshaft rotation direction | Counter clockwise(facing flywheel end) | |
| Place of Origin | CCEC | |
| Alternator | Model | KAL274B2 |
| Rated capacity(KVA) | 112.5 | |
| Rated output(kW) | 90 | |
| Rated voltage(V) | 400 | |
| Rated current(A) | 162.4 | |
| Rated frequency(Hz) | 50 | |
| power factor( Cos φ) | 0.8(lagging) | |
| Protection level: | IP23 | |
| Insulation grade | H | |
| Excitation mode | Brushless AVR,excitation | |
| Phase number | Three phase four wire | |
| Place of origin | Kwise Generator Pte Ltd | |
| Function | Power supply form | Battery 24V power supply |
show contents | Voltage, current, frequency, KVA, kW, kvar, kwh, KVAh, kvarh, power factor PF, mains voltage, mains frequency, speed, oil pressure, cooling water temperature, unit operation time, battery voltage, etc | |
| Safety protection function | Overspeed alarm, overspeed high shutdown, low oil pressure alarm, low oil pressure shutdown, high water temperature alarm, high water temperature shutdown, overvoltage alarm (120%) shutdown, undervoltage alarm (85%) shutdown, overcurrent alarm (110%) shutdown, low battery voltage (< 19v) alarm | |
