Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Name
New Fanuc Control Horizontal Flat Bed Metal Turnin
CNC Controller
GSK/Siemens/Fanuc CNC Controller
Max. Turning Length
1000mm
Spindle Bore Diameter
82mm
Tool Turret
Electrical Turret 4-Station
Guideway
Horizontal Hardened Guideway
Tailstock
Manual Tailstock
Hydraulic Chuck
Optional Choice
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Product Description

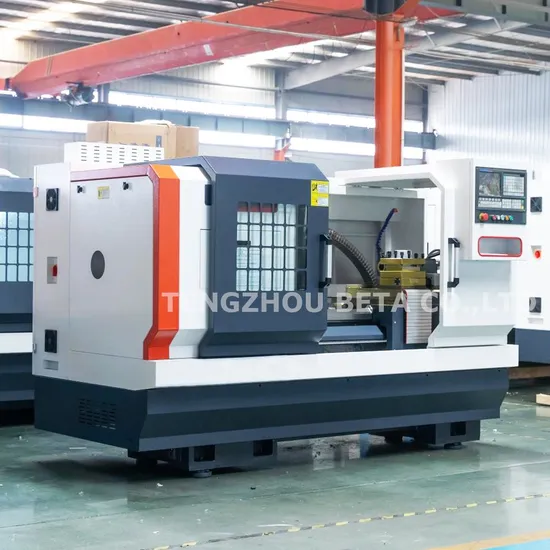

New FANUC Control Horizontal Flat Bed Metal Turning CNC Lathe CK6160
Standard accessories:
Flat bed structure, hardened guideway,
width of guide 400mm, Max.swing over bed 600mm,
Spindle bore diameter 82mm(130mm is optional),
Distance between points 1000/1500/2000mm,
Spindle motor power 7.5kw,
Spindle frequency converter speed adjustment,
CNC controller GSK
10 inch manual 3-jaw chuck ,
4-way electric toolpost,
manual tailstock,
automatic coolant system and lubrication system,
work light, tools & Tool box, English operate manual
Optional accessories:
Siemens/Fanuc CNC controller,
Hydraulic chuck,
Hydraulic tailstock,
6/8-station turret,
| Model | CK6160/2000 |
| Max. swing over bed | Φ600 mm |
| Max. swing over cross slide | Φ395 mm |
| Type of guideway | Hardened guideway |
| Width of guideway | 400mm |
| Max. Turning diameter (disc type workpiece) | 600mm |
| Max. Turning length | 1850mm |
| Spindle bore | Φ82 mm |
| Max. diameter of the bar | Φ80 mm |
| Spindle nose | A2-8 |
| Taper of spindle front hole | Metric 90mm 1 : 20 |
| Spindle speed | 150-1800rpm variable speed
spindle frequency control |
| Spindle motor power | 7.5 kw |
| Chuck type | Manual 3-jaw chuck |
| Chuck size | 250 mm |
| X/Z axis travel | 320mm, 2000 mm |
| X/Z axis torque | 5/7.5 N.m |
| X/Z axis rapid feeding speed | 6/8 m/min |
| X/Z axis position accuracy | 0.005 mm |
| X/Z axis repeatability | 0.005 mm |
| Tool bar section | 25x25 mm |
| Tailstock sleeve dia. | Φ75 mm |
| Tailstock sleeve travel | 150 mm |
| Tailstock taper | MT5 |
| N.W./G.W. | 3400/3800 kg |
| Machine dimension | 3750*1700*1820mm |
>>
