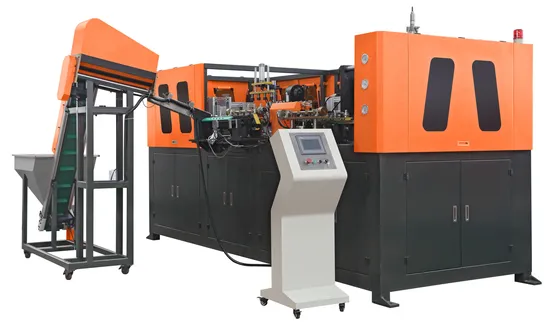

4 Cavity Automatic Blow Moulding Machine (BM-A4)

Product Description

4 Cavity Automatic Blow Moulding Machine (BM-A4):
BM-A4 Full automatic bloing bottle machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Reasonable design, full automatic control, save power and labor.
Adopt high quality components.
Feeding system carries the performs by robot automatically.
Infrared oven heater adopts the quartz lamp to heat the PET tube.
Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble -shooting, maintenance and other benefits.
We have perfect service after sales

Main part:
Pneumatic part	Valve	AIR TAC/SMC
	Cylinder
Electric part	PLC	LG
	Operating system	LG
	Relay	OMRON
	Infrared thermometer	America Raytek
Note	All of the electrical components adopts CE/UL / CCC approved international advanced high-tech product.
Main parameter:
Model	BM-A4
Productivity	Depend on bottle design	3500-3800 Pcs/Hour
Product type	Body diameter	≤ 100mm
	Height	≤ 310mm
	Neck diameter	18-38mm
Mold	Cavity	4 cavity
	Mold thick	240mm
	Mold	260*240*370mm
Main machine power	Electrical source power	380V/220V 50/60Hz
	Rated Power	49KW
	Really use power	10-15KW
Air source	LP air compressor	1.6m3 /min 10Kg
	HP air compressor	2.0m3 /min 30Kg
	Air dryer	2.0m3 /min 30Kg
Cooling water	Cooling water	15L/Min
Size	L*W*H	1910*1858*1935mm
	Weight	3600Kg
Auxiliary equipment( pre-form unscrambler)	L*W*H	2000*950*2480mm
	Weight	250Kg
Resin available		PET

---
