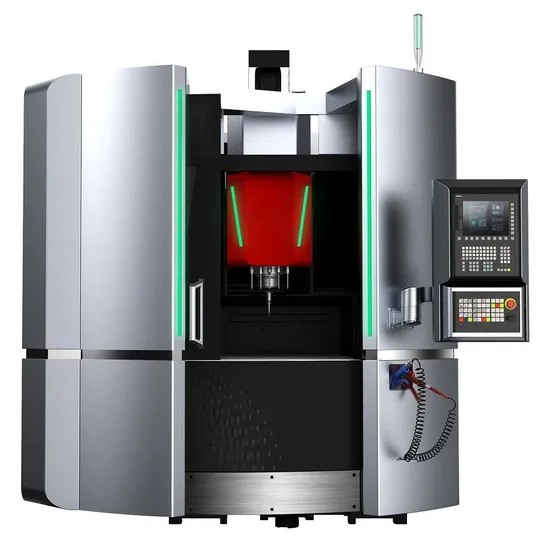

High-Speed Precision 5 Axis CNC Milling Machine for Metalwork

Product Description

Advanced Metal Processing High Speed CNC Machine 5 Axis CNC Milling Machine
Product Description

Main parts	Parts Features
X/Y/Z/A/C axis travel	700*420*330mm-±120°*±360°
DD 5-axis table size	Φ 250(Max. piece Φ 350)
Iead screw	Japan NSK ф40-10(Hollow oil-cooled)
Guideway	INA 45 Ball line rail
Cutting feed	20m/min
Rapid feed	30m/min
T-slot size	12mm
XYz axis positioning accuracy and repeatability	0.004/0.002
A-axis positioning accuracy and repeatability	10″/8″
C-axis positioning accuracy and repeatability	6″/5″
A-axis rated torque and maximum torque	131.7/527.8N*M
C-axis rated torque and maximum torque	55.9/251.9N*M
A-axis braking mode and braking torque	Air brake / 300N *M
C-axis braking mode and braking torque	Air brake / 150N *M
Bench up to ground height	940mm
Distance from workbench to spindle end surface	150-480mm
Maximum bench load (average load)	Horizontal 50Kg; Vertical 30Kg
Distance from the spindle center to the front of the fuselage	680mm
Maximum work size	Φ350*280mm
Spindle type	150 Electrospindles
The highest speed of the main shaft	20000rpm
The principal shaft is rated power	20Kw
The main shaft is rated torque	30.7N*M
Spindle cooling	water-cooled
spindle taper	HSK-A63
Maximum capacity of the knife library	24T
Tool specification	A63
Maximum diameter (no adjacent knife)	120mm (160mm)
Tool length	250mm
Knife weight	5Kg
Three-axis motor power	3/3/3Kw
Outline dimensions of the machine tool	2260*3200*2650mm (including rear chip conveyor)
Machine heavy	6500Kg

Anoher Advantages
• Immerse yourself in a new era of precision and efficiency with our cutting-edge production environment. Meticulously designed to exceed the industry's highest standards, it ensures your operations achieve unparalleled excellence and remarkable results, elevating your business to unprecedented heights.
Our diverse range of advanced imported machinery encompasses state-of-the-art horizontal and vertical machining centers. Featuring high-precision CNC boring machines with rotating tables and gantry guideway grinding machines, each is engineered to deliver outstanding accuracy. This precision notably enhances assembly quality, extending product longevity and improving overall performance.
• State-of-the-Art Detection Techniques
Harnessing advanced laser technology, we meticulously test and calibrate for pinpoint positioning accuracy. Adhering strictly to German VDI3411 inspection standards, we perform five rigorous tests per standard, ensuring unrivaled precision and reliability for every machine.
Every machine tool undergoes comprehensive processing tests before it leaves our facility, consistently exceeding industry standards for processing accuracy. Your investment is guaranteed to deliver exceptional, reliable results.
Product sample
• Amplify your productivity with our revolutionary Automated 4-Axis CNC Drilling Milling Center! This highly advanced machine effortlessly combines milling, drilling, and tapping, setting new benchmarks in efficiency and precision. Ideal for vertical machining, it transforms your production processes with unmatched ease and performance.
• Achieve mastery in precision engineering with our CNC machine, expertly designed to handle a wide spectrum of materials including aluminum, steel, copper, and non-metal profiles. It elevates craftsmanship to unparalleled levels, ensuring each project is a masterpiece of detail and precision.
• Transform your production capabilities across a multitude of industries, such as 3C electronics, rail transportation, aerospace, and linear module guide rails. Our versatile CNC machining solutions empower you with cutting-edge technology for exceptional versatility and superior performance, expanding the limits of innovation.
Packaging & Shipping
•Highly Protective: Our expertly engineered packaging solutions provide unparalleled protection for the Vertical CNC Drilling Machine Center during transit. With cutting-edge protective measures, we ensure your product remains in flawless condition, giving you complete peace of mind from departure to delivery.
•Structural Stability: Our packaging is meticulously crafted to uphold the machine's structural integrity with precision. Each component is securely enclosed, ensuring the machine arrives in perfect condition, ready for immediate and flawless operation upon unboxing.
•Environmentally Friendly and Recyclable: Reflecting our commitment to sustainability, we utilize sturdy yet eco-friendly packaging materials. Our fully recyclable solutions provide outstanding protection while minimizing environmental impact, showcasing our forward-thinking approach to technology and packaging.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a streamlined process to prioritize your order. A 40% initial deposit secures your purchase, and the remaining 60% balance is due before shipment. This ensures a smooth, efficient transaction and timely delivery.
2. What are your trade terms?
A: Our flexible trade terms include FOB, CFR, and CIF, providing you with the versatility to choose the most convenient and cost-effective option tailored to your specific requirements.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we ensure your order is ready within 30 days. Customized or special machines may require additional time. Place your order according to our schedule for timely and reliable delivery.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set. We offer a comprehensive one-year warranty, providing you with peace of mind and satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a sturdy wooden case to ensure it arrives in perfect condition, protecting your valuable investment.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the most suitable model tailored to your precise needs. Alternatively, you can select the exact model yourself.
Alternatively, you can send us your product drawings, allowing us to identify the ideal machine configuration to meet your specific requirements.

---
