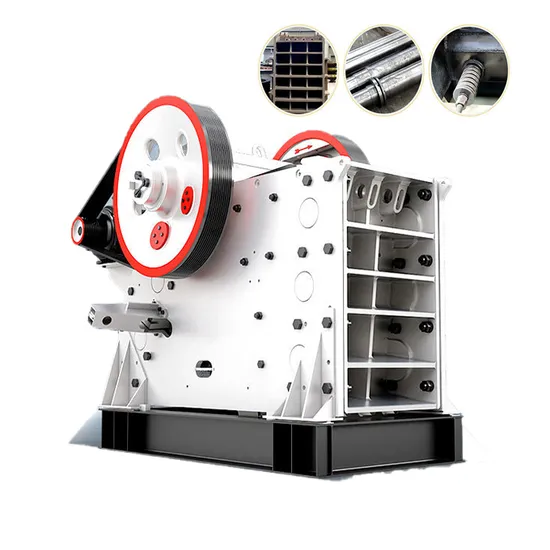

Jaw Crusher Machine for The Stone

US$3,000.00-4,800.00 1 Piece (MOQ)

Basic Info.

Model NO.

Type

Jaw Crusher

Application

Machinery & Hardware, Construction, Mineral Industry, Stone Industry

Drive

Electric

Crushing Style

Extruding

Compressive Strength (For Crushing)

250-300MPA

Crushing Degree

Intermediate Crusher

Finished Surface

Cut Off Tool

Certification

Condition

New

Color

White

Feeding Port Size

150X250mm

Max Feed Size

125mm

Discharge Opening Adjustment Range

10-40mm

Capacity

1-3t/H

Eccentric Shaft Speed

250r/Min

Motor Power

5.5kw

Total Weight

0.8t

Transport Package

Wooden Box

Specification

720x660x850mm

Trademark

Origin

China

HS Code

8474100000

Production Capacity

0.8t

Product Description

1.Product Introduction
Jaw crusher is a crusher which is composed of two jaw plates, static jaw and moving jaw, to simulate the movement of animals to complete the material crushing operation.
2.Apply Field
It is widely used in the crushing of various ores and large materials in mining smelting, building materials, highway, railway, water conservancy and chemical industries.
It is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.

Model	PE150x250	PE200x300	PE200x350	PE250x400	PE400x600
Feeding Port Size	150x250mm	200x300mm	200x350mm	250x400mm	400x600mm
Max Feed Size	125mm	180mm	180mm	210mm	340mm
Discharge Opening Adjustment Range	10-40mm	15-50mm	18-70mm	20-60mm	40-100mm
Capacity	1-3t	2-6t	3-10t	5-20t	16-60t
Eccentric Shaft Speed	250r/min	260r/min	260r/min	300r/min	275r/min
Power	5.5kw	7.5kw	11kw	15kw	30kw
weight	0.8	1.2t	1.5t	2.8t	7t
