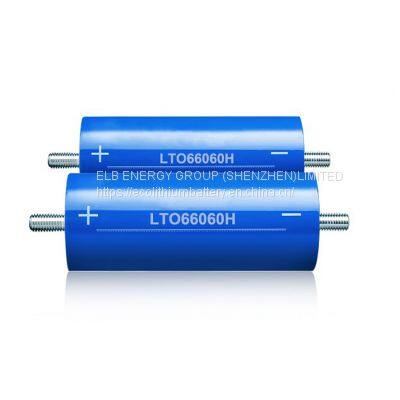

40Ah LTO Battery

Product Details

Product Details

Product Description

Product Description
This 40Ah LTO Battery are design with lithium titanate chemistry.
This battery have super low temperature performance in -50℃ and last more than 39000 times.
NO.ItemStandardNote
1Standard Capacity40Ah2C (current value of 80A at 2C)
2Minimum Capacity40Ah2C
3Standard Voltage2.3 V
4DimensionD66*H161mm

5

Charge Conditions
Cut-off Voltage2.8±0.05Vconstant-current charge to 2.8V at 10C, constant voltage charge to stop until 0.01C m A.
Cut-off Current0.01C
6Max. Charging Current400A
7Discharge Cut-off Voltage1.6V
8Standard Discharge Current80A

9
Fast Discharge Current400AThis current is the maximum current recommended for the combination of cores, and the specific value should be determined according to the combination structure.
10Max. Continuous Discharge Current400AOnly for single cell
11ChemistryLTO

12

Cycle Characteristic


the residual capacity is no less than 80% of rated capacity at 2C rate.
39000 times(100%DOD)

13Working TemperatureCharge:-50℃~60℃


Discharge:-50℃~60℃
14Storage Temperature-50℃~60℃Short-term storage (15Cell WeightApprox 1210g

The Certification that ELB Got:
ELB Battery certification
Check details in ELB certification center.
