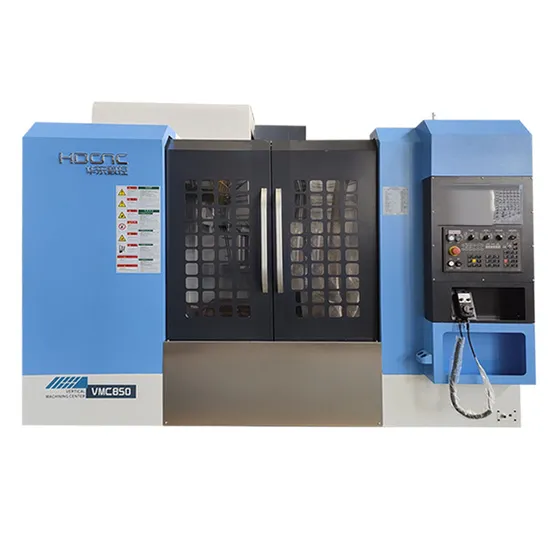

CNC Vertical Machining Center Vmc850 with Linear Guide Way

Product Description

1.machine structure
I.Disc type manipulator ATC efficiently improves machine working efficiency.
II.XYZ axis adopts precision roller linear guideway,which is with big load capacity,realize rapid movment.
III.Built-in type and high rigidity spindle ensure high efficiency cutting features.
IV.wide and solid bed and thickened and lengthened saddle ensure machine with high stability and heavy-duty cutting features.
V. XYZ axis adopts precision double-nut ball-screw transmission,and imported special bearing,pre-load assembly,all factors organize high rigidity and stable transmission system.
2.Machine model

MODEL	Unit	VMC850S	VMC850	VMC855	VMC1060	VMC1160	VMC1260	VMC1370	VMC1380	VMC1580
Table size	mm	800*500	900*500	1000*550	1200*600	1200*600	1200*600	1400*700	1400*800	1600*800
Max.load	kg	400	500	500	800	800	800	1200	1300	1500
No.-W*distane	mm	5-18*90			5-18*100			5-18*110	7-18*110	7-22*110
XYZ travel	mm	650/500/500	800/500/500	800/550/550	1000/600/600	1100/600/600	1200/600/600	1300/700/700	1300/800/700	1500/800/700
spindle nose to table surface	mm	120-620	150-650	120-670	120-720	120-720	120-720	100-800/60-720	185-885	150-850
spindle center to Z axis guide surface	mm	550	570	595	650	650	650	750	850	855
3 axis rapid speed	m/min	48/48/48	48/48/36		36/36/36			24/24/24	20/20/20
Max.spindle speed	rpm	10000		8000				8000/6000	8000/6000	6000
spindle power	kw	7.5/11			11/15			11/15or15/18.5	15/18.5	15/18.5
Tool holder type		BT40						BT40/BT50	BT50
Pull nail		45°
ATC capacity		24T
Max. diameter tool*length	mm	Φ85*350						Φ85/Φ125*300	Φ125*300
CNC system		FANUC SIemens and other system
machine weight	kg	4900	5300	5800	6800	7000	7500	10800	13800	14300
machine overall size(L*W*H)	cm	210*260*265	270*228*258		320*255*270			350*270*280	400*270*280	41*270*280

3.Standard accessories

front row chip full cover sheet metal without the chip	drawer type water tank and chip box	backward impact chip washing device
Full -function operation panel and MPG	ATC	Belt drive spindle
sprinkler cooling at spindle side	Air cooling system	heat exchange device
water gun,air gun	working light alarm light

4.Optional accessories

central outlet function of spindle	3 axes linear scale	the fourth axis function
spindle cooling system	oil-water separation device	spindle direct connection 12000rpm
chain type chip remover
