4-51mm Hydraulic Rubber Hose Crimping Tool Fitting Press Machine

Product Description

Product Description
This hose crimper KM-91H-7 is our mature product. With the upgraded technology, the machine can crimp 2" 4SP hose easily without full load. About inconvenient to fill lubricating oil to the annular head, we install the self-filling oil cup and oil groove, with which oil can be filled automatically. The resin gasket between die base can protect the machine from debris dropping. Considering to crimp the non-standard bend, we enlarge the opening and passing ability. Moreover, integrated hydraulic system keeps the operation stronger and more stable. The new developed operation system makes the crimping more efficient and accurate.

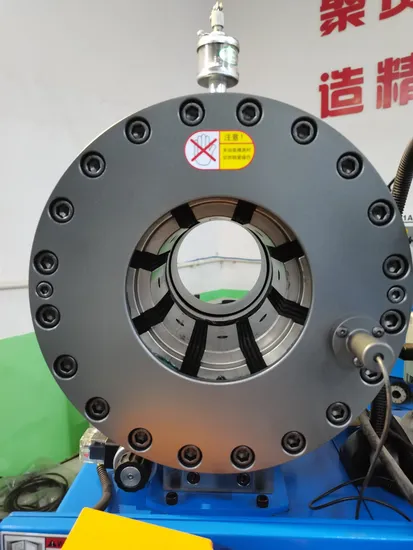

Detailed Photos

Product Parameters

Crimp range:	1/8"-2" IV
Standard voltage&motor:	380V/3kW
Optional voltage&motor	110V,220-240V,415V,440V
Crimping force	640 Ton
Opening without dies	φ122mm
Opening	+ 28mm
No.of standard die	12 sets
Systematic Pressure	30Mpa
Weight	185kg
Volume (L*W*H)	720*530*730(mm)
Quick change tool & Die shelf	has

Our Advantages
Advantages Of Hose Crimping Machine KM-91H-7
1).Microcomputer control, accuracy and reliability; 2).6 functions, can be quickly selected; 3).Select import cartridge valves, performance steady; 4).Suitable for quick chang tool.
Applications Of Hose Crimping Machine KM-91H-7
Hydraulic Hose Crimper why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.

---
