Popular Rear Loading Computer Panel Saw Machine 330c with Stable Electrical for Price

Product Description

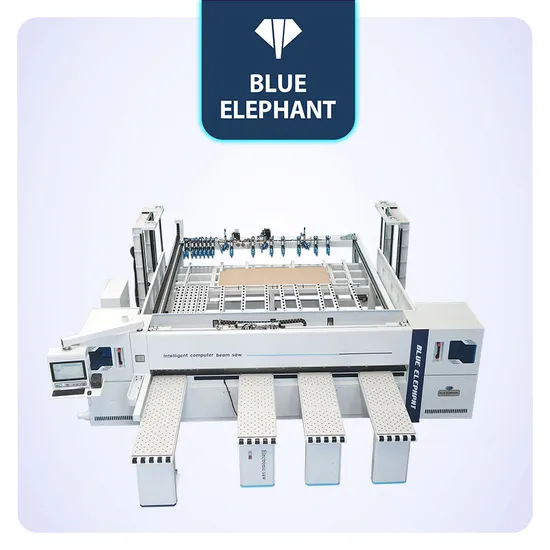

Popular rear loading computer panel saw machine 330C with stable electrical for Price

Machine Features:
1. The main and subsidiary workbenches are welled with 25mm and 18mm thick steel plates respectively to ensure long-term sawing accuracy. 2. High-quality and stable electrical appliances can prolong the service life of the panel saw machine. 3. The air pressure is kept at 0.6-0.8kgf/cm2, which ensures stable operation, excellent cutting accuracy and outstanding durability. 4. The rear feeding lifting platform automatically feeds the panels, saving time and manpower and improving efficiency.

Parameters:

Items	Parameter
Model	ELECNC -330C
Overall dimension	5900x5800x1800mm
Max. cutting length	3300mm
Max. cutting thickness	100mm
Positioning accuracy	±0.02mm
Cutting accuracy	±0.15mm
Main saw rotating speed	4100r/min
Max. auto feeding speed	100m/min
Groove saw rotating speed	6200r/min
Main saw motor	15kW
Groove saw motor	2.2kW
High pressure fan	2.2kW

PS:All the working area and specifications can be customized according to your requests.

Detailed Photos








Sample & Application
It is mainly used for the sawing of the wooden box and the cutting board of the wooden box to obtain the board with the size meeting the specifications.


Packaging & Shipping
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.




Our Service
1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.




Company Profile
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
