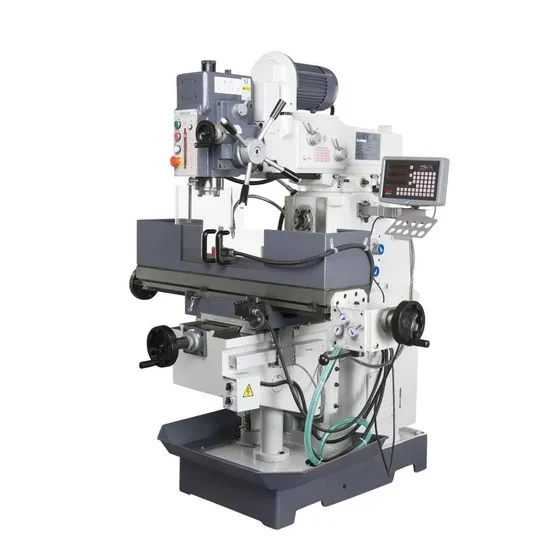

Vertical Universal Drilling Milling Machine Xz6326

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
XZ6326
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990

Product Description

Universal Milling Machine XZ6326

Specifications XZ6326
Table size 1120x260mm
T slot 5
Size (Width) 14mm
Centre distance 50mm
Max. load of table 200kg
Longitudinal travel (manual/auto) 600mm
Table cross travel (manual/auto) 300mm
Table vertical travel (manual/auto) 380mm
Spindle taper ISO40
Spindle speed/step--Vertical 67-2010rpm/12steps
Spindle speed/step--Horizontal 38-1310rpm/12steps
Max.drilling dia. 30mm
Max. end milling width 125mm
Max. vertical milling dia. 25mm
Max. tapping dia. M16mm
Quill travel 120mm
Swivel angle of headstock ±45º
Vertical spindle axis to column surface 220-760mm
Vertical spindle nose to table surface 80-460mm
Horizontal spindle axis to table surface 0-380
Horizontal spindle axis to arm bottom 175mm
Arm travel 520mm
Longitudinal/cross feed 24-720mm/min/8steps
Vertical/step ―
Longitudinal/cross rapid speed 1040mm/min(X)
Rapid traverse vertical ―
Automatic spindle feed 0.1/0.15/0.3mm/rev (3steps)
Main motor 1.5/2.2kw(V)/2.2kw(H)
(X/Y/Z) feed motor 0.37kw(X)
Coolant motor 0.04kw
Packing size 160x152x222cm
N.W/G.W 1350/1500kg

Standard Accessories Optional Accessories
Machine Work lamp Digital readout system
Coolant system Spindle protect guard
CE electrical cabinet Pendent control station
Drill chuck Dividing head device
Drawbar Rotary table
Chip tray Clamping kit
Manual lubrication oil pump Vice
X axis geared power feed Y axis electronic power feed

Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
