Product Description
Product Description

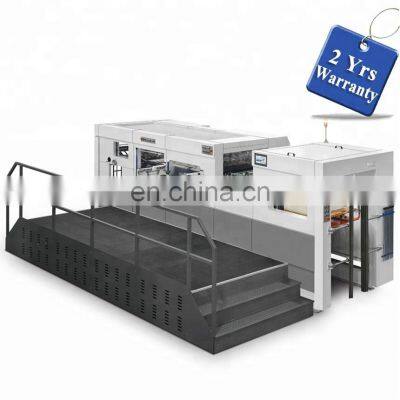

UMC1060/1080 automatic die cutter creaser press maquina maquina troqueladora automatica
Videos
Video demonstration only for reference
Video 01: /watch?v=sx_ps8V8PIA
Video 02: /watch?v=vppG8FJj8vg
Product Description
Description:
The machine is the core equipment for paper converting and printing industry. Unique drive gears are adopted such as high-precision indexing mechanism, pneumatic closed up, pneumatic clutch, overload protection and automatic compression relief etc, to ensure stable and high speed running of the machine. This machine is equipped with practical and reliable mechanisms such as pre-stack device, secondary delivery mechanism and manual sampling etc, which ensure the excellent performance of the machine. Electrical components and driving elements are equipped with well-known brands to acheive high die cutting precision and running reliability. Also man-machine interface is able to monitor machine running status, troublshooting and indicting relevant help information which fully actualizes man-machine communication.
Parameters:
| Model No. | UMC-1060 |
| Max sheet size | 1060×760mm |
| Min sheet size | 400×350mm |
| Max die cutting size | 1050×750mm |
| Gripper margin | 9-17mm |
| Inner chase size | 1120mm×786mm |
| Stock range | 90~2000g/m(paper)
0.1~2mm(paper)
less than 4mm(corrugated)
|
| Die cutting accuracy | less than ±0.1mm |
| Max die cutting force | 300t |
| Max die cutting speed | 7500s/h |
| Max feeder pile height | 1600mm |
| Max delivery pile height | 1400mm |
| Main motor wattage | 11kw |
| Overall dimension | 7800mm×4300mm×2310mm |
| Net weight Approx | 17t |
| Full Load wattage | 16.9kw |
| Air requirement | 0.6~0.7Mpa,≥0.37m3/min |
Detailed Images
Feeder
Brake
Die Cut Mold
Computer Control Panel
Delivery Section
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1. What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min
B: Paper thickness in GSM
C: Some photos of your finished products
2. Are you a manufacturer
Yes we have been manufacturing such machines over 10 years and also we are a professional exporter.
3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.
4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.
6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Pack & Ship
Wooden Case Loading and Transport
Certifications
