LGP400/700/80/100dpi-D Diesel Grout Mixer Pump Supplier

Product Description

LGP400/700/80/100DPI-D Diesel grout mixer pump supplier Description of grout plant:
LGP400/700/80/100DPI-D grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.

Features of grout plant:
1. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.
2. Grouting pressure and displacement is adjustable.
3. The function switch between mixer and pulping machine is realized by using squeeze switch.
4. The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.
5. Full hydraulic drive, three cylinders air cooling diesel engine acted as universal grouting applications.
6. Easy to operate and maintain.
7. Up to 5mm particle size.
8. Air cooling and water cooling for the hydraulic.

Technical data of grout plant:

Name		Data
Type		LGP400/700/80/100DPI-D grout Station
Mixer	Volume	400L
	Speed	1500rpm
Agitator	Volume	700L
	Speed	36rpm
Grouting pump	Pump pressure and output	40bar@80L/min
		100bar@40L/min
Dimension	Dimension	2480×1960×1995mm
	Weight	1965kg

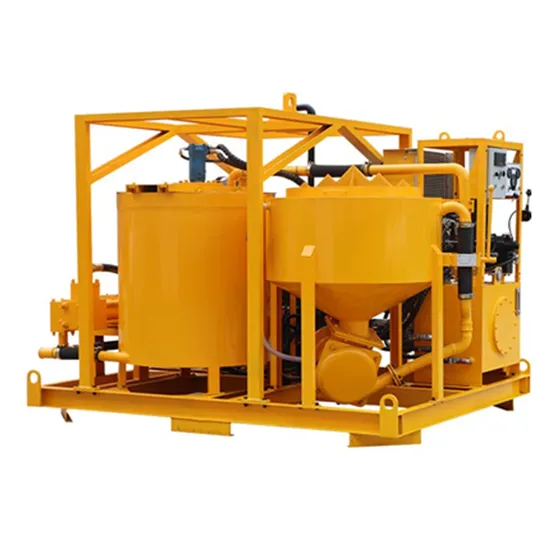

Detailed Images:

Application:
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting.
Acted as a grouting plant in the Pipe Jacking Machine
Company Information:

We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.

---
