Hot Sale CNC Vertical Lathe Double Column Vertical Lathe Machine

Product Description

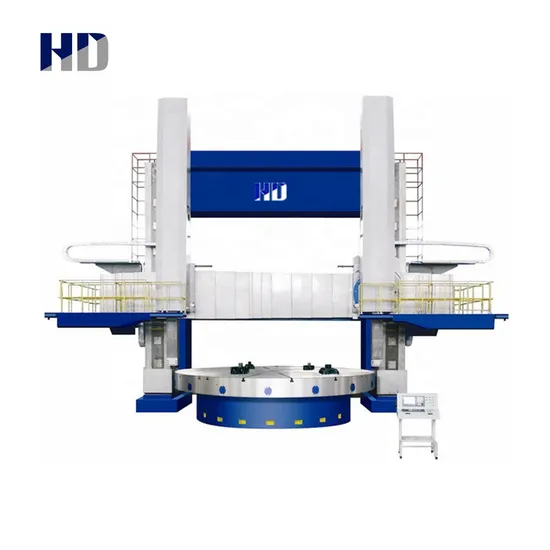

Product Picture
Specification Parameter

Specification	Unit	CK5225	CK5232	CK5235	CK5240	CK5250	CK5263
Max.Cutting Diameter	mm	2500	3200	3500	4000	5000	6300
Max.Cutting Height	mm	1600/2000/2500	1600/2000/2500	1600/2000/2500	1600/2000/2500	2000/2500/3150	3150/4000
Worktable Diameter	mm	2250	2830	2830	2830/3200/3600	4000/5000	4500/5000/5700
Max.Loading Weight	T	10/16/20	10/16/20	10/16/20	20/32	32/50	60/80
Max.Worktable Torque	N. m	63000	63000	63000	63000	100000	100000/150000
Worktable Speed Range	rpm	2-63	2-63	2-63	0.5-40	0.5-40	0.5-38
Worktable Step range	4 Gears Shift Stepless / 2 Gears Shift Stepless
Right Tool Post Cutting Force	Kn	35	35	35	35	35/50	50/80
Left Tool Post Cutting Force	Kn	28	28	28	28	28/40	40/70
Tool Post Horizontal Travel	mm	1400	1700	1900	2150	2765	3450
Right Tool Post Feed Range and Steps	mm/min	0-500 ( Servo Stepless )
Tool Post Vertical Travel	mm	1000/1250/1400	1000/1250	1000/1250	1000/1400	1250/1400/1600	1600/2000
Main Motor	kw	55	55	55	55	AC55/75	AC75/90/110
Tool Post Rapid Speed	mm/min	2000
Crossbeam Speed	mm/min	380
Machining Precision	--	IT7
Positioning Precision	mm	0.03
Repositioning Accuracy	mm	0.015
Machine Weight	t	32/34/36	37/39/41	39/41/43	43/45/48	60/65/70	118/127/178
Overall Dimension(L*W*H)	mm	5180*4700*4800	6310*4950*6245	6610*5100*6245	6900*5200*6600	9200*5800*7700	11500*7500*9300

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Factory Picture
Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
