High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor

Product Description

Product Description
product overview

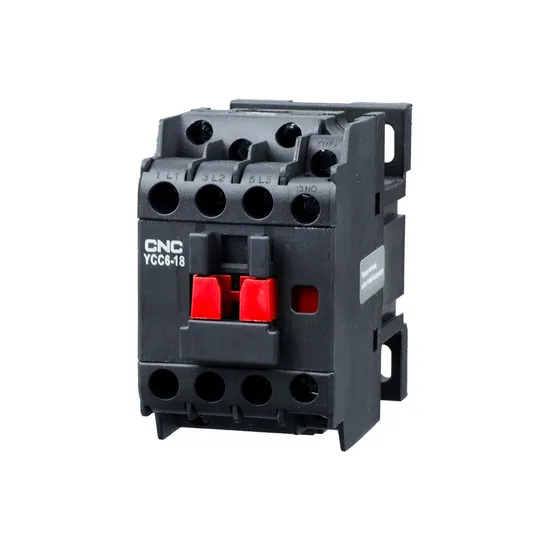

Ycc6 series Ac contact or with novel appearance and compact structure is suitable for using starting & controlling the Ac motorfrequently, switching on and off the circuit at a long distance.
It is used in combination with thermal relay to compose a magnetic motor starter. standard: IEC 60947-1, IEC60947-4-1.
specifications
Rated operation current(le):9-95A
Poles:3p
o Installation: Din rail and screw installation
operating and Installation conditions

Type	operating and Installation conditions
Installation category
pollution level	3
certification	CE, CB, CCC, TUV
protection degree
Ambient temperature	limit of temperature: -35ºC+70ºC; normal temperature: -5ºC~+40ºC; The average no more than+35 within24 hours If not in normal operating temperature range, please refer to "Instructions for abnormal environment"
Altitude	≤2000m
Ambient temperature	The maximum temperature of70 degrees, the air relative humidity not exceed 50%, under lower temperature can allow for higher relative humidity. to90%, special measures should be taken for occasional condensation due to humidity changes.
Installation position	Inclination between installation surface and vertical surface
shock vibration	products should be installed and used without significant shake, shock and vibration place.

Specifications

Appearance
Type	YCC6-09	YCC6-12	YCC6-18	YCC6-25	YCC6-32	YCC6-38	YCC6-40	YCC6-50	YCC6-65	YCC6-80	YCC6-95

Main circuit characteristic

Poles			3P
Rated insulation voltage(Ui)		V	690
Rated operating voltage(Ue)		V	220/230,380/400,660/690
Rated thermal current(Ith),AC-1			20	20	32	40	50	50	60	80	80	125	125
Rated operation current(Ie)	AC-3,380/400V	A	9	12	18	25	32	38	40	50	65	80	95
	AC-3,660/690V	A	6.6	8.9	12	18	22	22	34	39	42	49	49
	AC-4,380/400V	A	3.5	5	7.7	8.5	12	14	18.5	24	28	37	44
	AC-4,660/690V	A	1.5	2	3.8	4.4	7.5	8.9	9	12	14	17.3	21.3
Rated operational power(Pe)	AC-3,380/400V	kW	4	5.5	7.5	11	15	18.5	18.5	22	30	37	45
	AC-3,660/690V	kW	5.5	7.5	10	15	18.5	18.5	30	33	37	45	45
	AC-4,380/400V	kW	1.5	2.2	3.3	4	5.4	5.5	7.5	11	15	18.5	22
	AC-4,660/690V	kW	1.1	1.5	3	3.7	5.5	6	7.5	10	11	15	18.5
Mechanical life		10000 times	1200			1000			900			650
Electrical life	AC-3		110				90					65
	AC-4		22				22		17			11
Frequency of operation	AC-3	times/ hour	1200				600
	AC-4		300				300

Connecting capability of main circuit terminal

Flexible wire	1 wire	mm²	1 …4	1.5 …6		2.5…25	4…50
No terminal	2 wire	mm²	1…4	1.5…6		2.5…16	4…25
Flexible wire	1 wire	mm²	1…4	1…6		2.5…25	4…50
With terminals	2 wire	mm²	1…2.5	1…4		2.5…10	4…16
Hard wire	1 wire	mm²	1…4	1.5 …6	1.5 …10	2.5…25	4…50
No terminal	2 wire	mm²	1…4	1.5…		2.5…10	4…25
Fastening torque		N·m	1.2	1.8		5	9

Coil

Rated control voltage(Us)	50Hz	V	24,36,48,110,127,220/230,240,380/400,415,440
	50/60Hz	V	24,36,48,110,127,220/230,240,380/400,415,440
Allowed control circuit voltage(Us)	Operation	V	Installation inclination angle ±22.5°: 85%~110%Us; Installation inclination angle±5°: 70%~120%
	Release	V	Installation inclination angle ±22.5°: 20%~75%Us;Installation inclination angle±5°: 20%~65%
Power consumption of coil	Actuation	VA	60	70	200	200
	Keep	VA	6-9.5	6-9.5	15-20	15-20
	Consumption	W	1-3	1-3	6-10	6-10

Auxiliary contacts

Auxiliary contacts specification		A	1NO+1NC
Rated thermal current (Ith)		A	10
Rated operating voltage (Ue)	AC	V	380
	DC	V	220
Rated control capacit	AC-15	VA	360
	DC-13	W	33

Type	Amax	Bmax	Cmax	a	b	c	d	e	f
YCC6-09, 12, 18	74.5	45.5	85.5	35	50/60	-	-	-	-
YCC6-25, 32, 38	83	56.5	97	40	50/70	-	-	-	-
YCC6-40, 50, 65	127.5	74.5	117	-	-	105	40	100/110	59
YCC6-80, 95	127.5	85.5	125.5	-	-	105	40	100/110	67

Type	Rated operation current(Ie)(A)	Rated thermal current (Ith)(A)	Rated operational power in category AC-3 (kW)
			380V	660V
YCC6-09N	9	20	4	5.5
YCC6-12N	12	20	5.5	7.5
YCC6-18N	18	32	7.5	10
YCC6-25N	25	40	11	15
YCC6-32N	32	50	15	18.5
YCC6-38N	38	50	15	18.5
YCC6-40N	40	50	18.5	30
YCC6-50N	50	60	22	33
YCC6-65N	65	80	30	37
YCC6-80N	80	95	37	45
YCC6-95N	95	95	45	55
