Factory Hot Sale Yarn Examining Machinery Tester ASTM D2255

Product Description

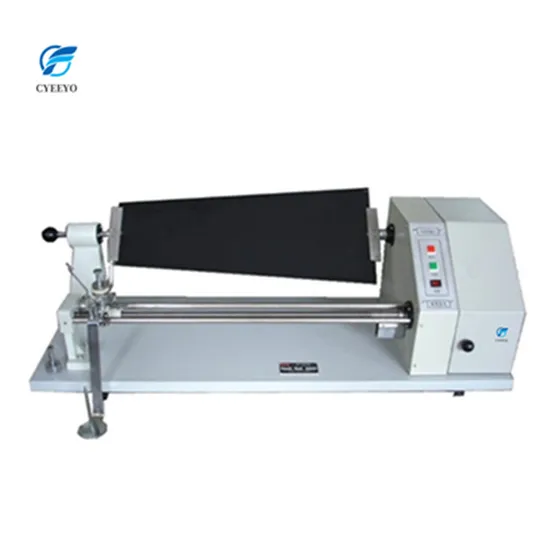

ASTM D2255 Factory Hot Sale Yarn Examining Machinery Tester

Product Description
Application:
It is used to reel specified count yarn in show board to evaluate the appearance of yarn.
Standard:
ASTM D2255 GB/T9996,GB/T 398,GB/T 5324,FZ/T 32004,FZ/T 32005,etc
Features:
Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test.
Various pitch to satisfy comprehensive requirements of different yarn linear density.
Equipped with alternative pre-tension (ref. picture).
Auto-stop function.
Adjustable winding speed.
Product Description
Application:
It is used to reel specified count yarn in show board to evaluate the appearance of yarn.
Standard:
ASTM D2255 GB/T9996,GB/T 398,GB/T 5324,FZ/T 32004,FZ/T 32005,etc
Features:
Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test.
Various pitch to satisfy comprehensive requirements of different yarn linear density.
Equipped with alternative pre-tension (ref. picture).
Auto-stop function.
Adjustable winding speed.
Technical Parameter:

Model	CY-381	CY--381A
Board size	250×220mm	575mm×250mm×160mm×3mm
Reeling density	7, 9, 11, 13, 15, 19 wraps/cm, 20/45mm 7steps
Rotate Speed	0-350r/min
Power supply	AC220V, 50Hz, 50W
Dimension	620×370×340mm	1065mm×460mm×270mm
Weight	20Kgs	30Kgs
