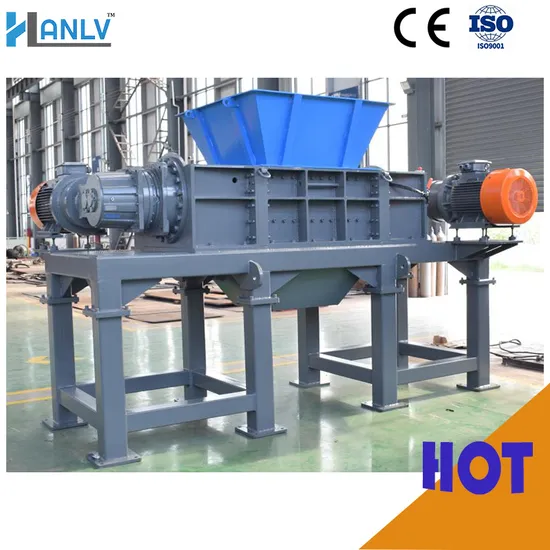

Waste Books Shredder Industrial Paper Cardboard Wood Plastic Recycling Crusher

Product Description

Product Description Product Introduction
The double-shaft shredder is a widely used and relatively extensive shredding machine, suitable for the preliminary processing of many materials. Based on the nature of the material and the required output, the power required can be initially estimated.Generally speaking,it is divided into single motor and dual motors.Single motor is suitable for fragile materials with low power requirements. Dual motors are equipped with dual reducers, and ZSY or planetary reducers can be selected according to needs.
It is characterized by fast discharging and high efficiency, which can meet general crushing needs.
HLV has designed different ranges of double-shaft shredders for common applications with different components (reducers, blade sets, etc.) to guarantee a wide range of material adaptability. At the same time, we have the ability to custom-built machines to suit specific material and input/output requirements.

This article introduces the Double shaft shredder- dual motors.

Which Materials can be Processed?
The shredder machine can easily pre-crush:1.plastic sheets;2.electronic waste;3.scrap (components, subassemblies; consumables);4.metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);5.aluminum cans;6.wood(wooden pallets or fruit boxes);7.plastic(plastic bottles or canisters);8.waste tire, rubber;9.waste household appliances;10.paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material);11.textiles (rags, garments, carpet);12.animal bones and organic waste.
. . . Discharge Effect
Product Highlights
1. heavy knife, high crushing efficiency, knives are made of alloy steel casting, solid and long service life.
2. frame plate thick, resistant to high torque, very strong.
3. microcomputer (PLC) automatic control, set to start, stop, reverse and overload automatic reverse control.
4. The device has a low speed, high torque, low noise, dust features can meet environmental standards.
5. easy to adjust, low maintenance, economical and durable.
6. thickness and number of claw cutter knife can be replaced according to different materials.
Technical Data Technical Parameters

1	Model	HLP-1200
2	Application	Books
3	Outlet size	50mm width short strips
4	Inlet Hopper Size( L W H)	1600mm*1400mm(as per customer's request)
5	Shredding Chamber Size	1200mm*1000mm
6	Rotary Speed	20-25rpm/min
7	Fixed Blades Quantity	24pcs
8	Moveable Blades Quantity	24pcs
9	Rotating Diameter of Blades	480mm
10	Blade thickness	50mm
11	Blades Material	SKD11
12	Hardness of Blades	56-59HRC
13	Axis Material	42CrMo
14	Shredding Chamber Material	45#
15	Supporting Frame Tube size	120mm*120mm*10mm
16	Main Motors	55kw x2
17	Shredding Capacity	3-5t/h
18	Machine weight	12-13t
19	Overall Dimension	5000mm*1800mm*2300mm(can design as customer request)
Others(Main Components)
1	Bearing Brand	SKF (4PCS)
2	Electronic Components	Mitsubishi PLC and other CHNT
3	Power	As request (380v,50Hz, 3phases)
4	Reducer	Planetary reducer( Boneng )
5	Motor	Siemens /Xima

Product Details

Packaging & Delivery
FAQ
Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
Q:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
A: HANLV has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
Customer Feedback

Company Profile Company Profile
Hanlv is a new type of enterprise integrating R&D, manufacturing, sales and service of solid waste treatment equipment. In particular, it has extensive experience in metal recycling and plastic&wood &Tire crushing.
Hanlv has many years of experience in the solid waste recycling industry, and its equipment is sold in many countries around the world. Reliable equipment quality is our philosophy.
What do customers need?----This question has always kept us going.
Project Case
Contact us
We will be happy to advise you.

---
