6 Tons Mini Excavator Xe55da with Auger in Chile

Product Description

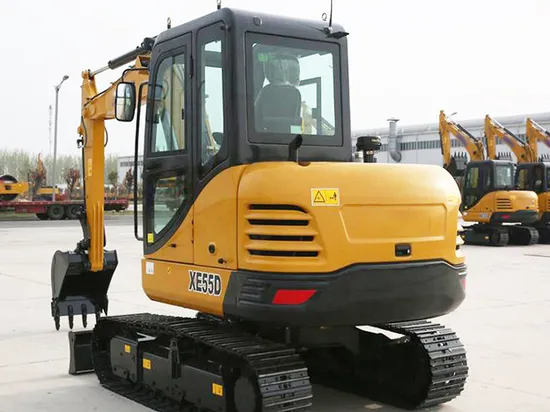

6 Tons Mini Excavator XE55DA with Auger in Chile

Product Description
1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the
maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket
ensure strong soil holding capacity.

Model		Unit	XE55D
Operating weight(without dozer blade)		Kg	5700
Bucket capacity		m³	0.2
Engine	Engine Model	/	4TNV94L-BVXG
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	36.2/2200
	Maximum torque/speed	N.m	210.6/1260
	Displacement	L	3.054
Main performance	Travel speed(H/L)	km/h	4.2/2.2
	Rotating speed	r/min	10
	Gradeability	°	≤35
	Ground pressure	kPa	31
	Bucket digging force	kN	48.3
	Arm digging force	kN	32.5
	Maximum tractive force	kN	50.5
Hydraulic system	Main pump	/	/
	Rated flow of main pump	L/min	149.1
	Main safety valve pressure	MPa	24
	Travel system pressure	MPa	24
	Swing system pressure	MPa	21
	Pilot system pressure	MPa	3.5
Oil Capacity	Fuel tank capacity	L	110
	Hydraulic tank capacity	L	77
	Engine oil capacity	L	10
Appearance size	Overall length	mm	5860
	Overall width	mm	1950
	Overall height	mm	2585
	Width of platform	mm	1780
	Track length	mm	1920
	Total width of chassis	mm	400
	Track gauge	mm	1500
	Counterweight clearance	mm	700
	ground clearance	mm	385
Working range	Max. digging height	mm	5630
	Max. dumping height	mm	3945
	Max. digging depth	mm	3830
	Max. vertical wall digging depth	mm	2680
	Max. digging reach	mm	6130
	Min. swing radius	mm	2460
Standard	Length of boom	mm	3000
	Length of arm	mm	1600
	Bucket capacity	m³	0.2

Detailed Photos

Company Profile
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Oriemac is a leading Chinese construction machinery exporter, located in Shanghai, and has introduced top Chinese machinery enterprises and their products to international markets. Oriemac brings you a wide range of construction machionery series as follows: -- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Crawler Crane, and Truck-mounted Crane -- Earthmoving Machinery, such as Wheel loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader -- Concrete Machinery, such as Concrete Pump, Trailer-mounted Concrete Pump and Concrete Mixer -- Drilling Machinery, such as Horizontal Directional Drill, Rotary Drilling Rig and Roadheader -- Logistics Machinery, such as Telescopic Handler and Forklift -- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Form, and Fire Truck

---
