Common Horizontal Lathe Machine

US$4,100.00
1-4 Pieces
US$4,000.00
5-9 Pieces
US$3,900.00
10+ Pieces

Basic Info.

Model NO.
c636 cq3136 C6136 m36
Type
Horizontal Lathe
Processing Accessory
Car Ship
Guide Rail
Horizontal Guide Rail
Tool Holder
Manual Tool Holder
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Normal Precision
Certification
ISO 9001
Condition
New
Net Weight
700kg
Transport Package
Packed in Wooden Cases with Steel Bottoms
Specification
1900*900*1200
Trademark
xing
Origin
China Linyi
HS Code
8458110090
Production Capacity
1000

Packaging & Delivery

Package Size
1600.00cm * 700.00cm * 1500.00cm
Package Gross Weight
750.000kg

Product Description

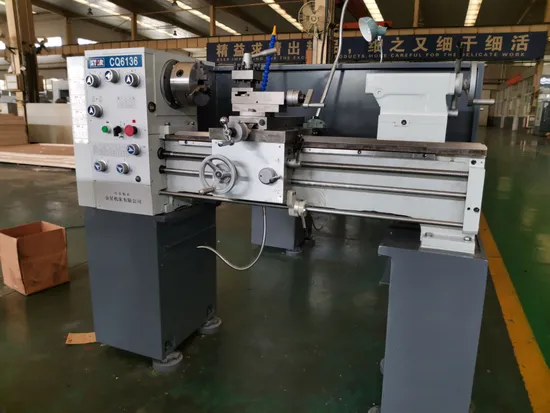

ITEM CQ6136
MAXIMUM swing diameter over bed 360mm
maximum swing diameter over table 220mm
distance between two centers 750mm
spindle speed 60-2000r/min/8
spindle bore 38mm
spindle type MT5
chuck size KZ11-160
z AXIS stroke 630mm
X axis stroke 160mm
tailstock type MT3
tool size 20/20mm
small toolpost stroke 70mm
longitudinal feed /grade 0.03-0.42mm/r/9
transverse feed/grade 0.011-0.052mm/r/9
metric thread /grade 0.25-9 mm /27
inch thread /grade 72-4T.P.I/33
diameter pitch tread 8-144D.P./30
modulus tread /gread 0.25-3.5M.P./25
motor power 380V/1.5kw
NW./GW. 600/710kg
overall size 1580x680x1200mm

Shandong Linyi Golden Star Machine Tool Co., Ltd.the original linyi machine tool plant, founded in 1965, is a research and development, production and manufacturing mechatronics CNC machine tool products and characteristics of export products for the main business of state-level high-tech enterprises, with annual production of CNC lathe, vertical machining centers, CNC milling machine, engine lathe, multi-purpose machine, surface grinding machine, etc. The comprehensive production capacity of more than Taiwan. The company has passed THE ISO9001 international quality system certification, and enjoys the right to import and export. It is a patent star enterprise in Shandong Province, with provincial enterprise technology center, provincial one enterprise one technology RESEARCH and development center, municipal engineering technology research center and key laboratory of high-grade CNC machine tool enterprises.
The company is the professional and technical personnel education base in Shandong Province, with 32 scientific research personnel, one expert with outstanding contribution and six senior titles enjoying the special allowance of The State Council. At present, the company has 24 national patents and 5 software Copyrights. Presided over the formulation of JBCPZT1319-2019 CNC double-head vehicle industry standard, and participated in the formulation of JB/T8326 CNC Instrument Horizontal Lathe industry standard.
