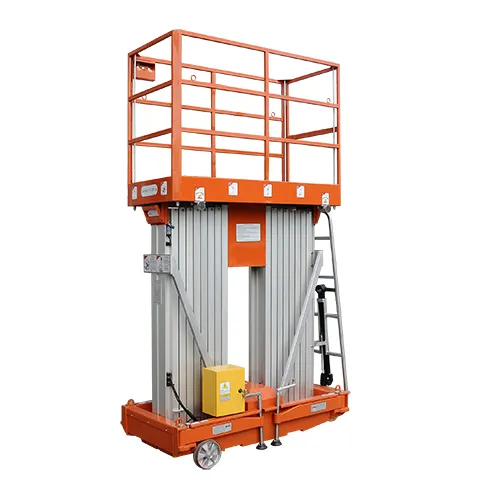

Gtwy Series 16m Battery Drive Double Mast Vertical Boom Lift Platform

Product Description

Product Description
AWP16-2000/ AWP14-2000/ AWP13-2000/ AWP12-2000/ AWP11-2000/ AWP9-2000/ AWP8-2000Main spec.
Working height:16.00m/14.00m/13.00m/12.00m/11.00m/9.00m/8.00m
S.W.L:156kg/200kg/250kg

Important features
self-leveling outriggers with sensor system, LED display, safe and reliable
Tilt back frame to reduce the machine height and easy to transport
Trunk loading device, convenient for loading alone
AC/DC Power system optional
Product Parameters

Size
Model	GTWY16-2000	GTWY14-2000	GTWY13-2000	GTWY12-2000	GTWY11-2000	GTWY9-2000	GTWY8-2000
Max.working heiget	18.00m	16.20m	15.60m	14.20m	12.60m	11.30m	9.80m
Platform Floor Height	16.00m	14.20m	13.60m	12.20m	10.60m	9.30m	7.80m
Overall Length(Stowed)	1.97m	1.97m	1.97m	1.97m	1.88m	1.88m	1.88m
Overall Width	0.81m	0.90m	0.90m	0.90m	0.81m	0.81m	0.81m
Overall Height(Stowed)	2.68m	2.74m	2.50m	2.30m	1.99m	1.99m	1.99m
Outrigger Footprint(L/W)	3.2/2.8m	3.2/2.4m	2.87/2.3m	2.87/2.3m	2.45/1.75m	2.45/1.75m	2.45/1.75m
Platform Size(Length/Wide)	1.73m×0.70m	1.73m×0.70m	1.73m×0.70m	1.73m×0.70m	1.73m×0.70m	1.73m×0.70m	1.73m×0.70m
Ground Clearance	0.05m	0.05m	0.05m	0.05m	0.05m	0.05m	0.05m
Performance
Model	GTWY16-2000	GTWY14-2000	GTWY13-2000	GTWY12-2000	GTWY11-2000	GTWY9-2000	GTWY8-2000
S.W.L	150kg	200kg	200kg	250kg	250kg	250kg	250kg
Max. Occupants	1	1	1	2	2	2	2
Up/Down Speed	72/53sec	66/47sec	60/41sec	54/35sec	48/29sec	42/23sec	36/17sec
Tyres(Back Wheels)	8in	8in	8in	8in	8in	8in	8in
Tyres(Front Wheels)	5in	5in	5in	5in	5in	5in	5in
Power
Model	GTWY16-2000	GTWY14-2000	GTWY13-2000	GTWY12-2000	GTWY11-2000	GTWY9-2000	GTWY8-2000
Lifting Motor(AC)	110-230VAC/1.5kW	110-230VAC/1.5kW	110-230VAC/1.5kW	110-230VAC/1.5kW	110-230VAC/1.5kW	110-230VAC/1.5kW	110-230VAC/1.5kW
Lifting Motor(DC)	12VDC/1.5kW	12VDC/1.5kW	12VDC/1.5kW	12VDC/1.5kW	12VDC/1.5kW	12VDC/1.5kW	12VDC/1.5kW
Batteries	12V/85Ah	12V/85Ah	12V/85Ah	12V/85Ah	12V/85Ah	12V/85Ah	12V/85Ah
Integrated Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A
Weight
Model	GTWY16-2000	GTWY14-2000	GTWY13-2000	GTWY12-2000	GTWY11-2000	GTWY9-2000	GTWY8-2000
Weight(AC)	980kg	850kg	815kg	780kg	675kg	630kg	585kg
Weight(DC)	1040kg	872kg	837kg	802kg	697kg	652kg	607kg

Recommand

Exhibition
Packaging & Shipping
FAQ
1.Q:How about your delivery time?
A: 5 days to ship if in stock, 25 days if it need to re-produce.
2.Q:Why should I choose from you?
A:Koosen have rich experience to choose suitable equipment to you,as we have been in this line over 13years.Moreover,our products are highly competitive,both in quality and price.
3.Q:What about your warranty time?
A:Generally,the product warranty period is 12 months for key components since you receive it..
4.Q:What should we do if there have quality problems?
A:Pls send picture or video about the broken part to us,we can provide technical support and free spare part of key parts within 12 moths.
5.Q:What payment methods do you support?
30% deposit and 70% balance will be paid in 3 working days after get copy B/L.
6.Q:What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.
7.Q:Are you factory?
Yes,we have our own factory.
8: Can I visit your company?
Of course at anytime.
9, Do you support customization?
Yes.We not only provide standard products,but also support customized products.

---
