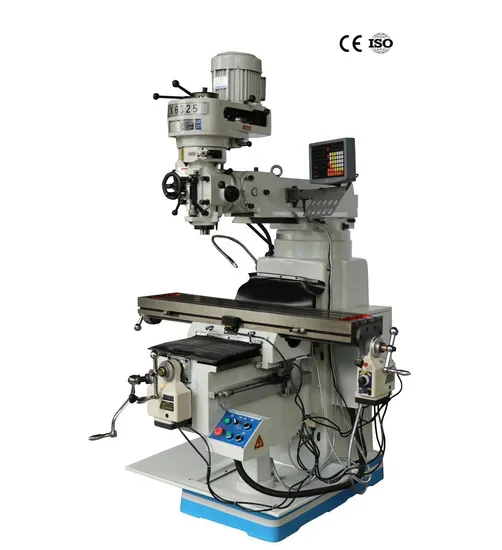

Senmo Vertical Universal Arm Type Turret Milling Machine X6325

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
X6325
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990

Product Description

Turret Milling Machine X6325,X6325A,X6325B Feature
·Heavy, solid model made of high-grade casting
·All axes with adjustable dovetail slideways
·Mill head can rotated and tilted
·Adjustable gibes on table
·Accurate position, good rigidity, big cutting power
·Automatic spindle sleeve feed

Specifications X6325 X6325A X6325B
Table size 254x1270mm(10"x50") 254x1370mm(10"x54")
Table travel Longitudinal 820/920mm 800/900mm 820/920mm
Cross 410mm 380mm 380mm
Vertical 400mm 350mm 350mm
T-slot No. and size 3x16 3x16 3x16
Ram travel 470mm 470mm 470mm
Distance from spindle nose to table surface 0-400mm 0-400mm 0-400mm
Spindle taper Standard R8(ISO30/ISO40 optional)
Spindle travel 127mm 127mm 127mm
Spindle speed 50HZ (16 steps) 65-4500rpm
60HZ (16 steps) 80-5440rpm
Optional Variable 60-4200rpm
Auto quill feed 0.04/0.08/0.15mm/rev(0.0015"/0.003"/0.006"/rev)
Spindle motor 2.25KW(3HP) 2.25KW(3HP) 2.25KW(3HP)
Head swivel right to left 90° 90° 90°
Head tilting front to back 45° 45° 45°
Net weight 1320kg 1280kg 1320kg

Standard Accessories Optional Accessories
Draw bar X/Y/Z axis power feed
Tool box and tools Air drawbar system
Working lamp Clamping kit
Electric box Mill chuck set
Handle oil pump Coolant system
Chip tray
Hang up panel
Automatic lubrication oil pump
3 axes with ball screws
Spindle protection with power off
Worktable protection with power off
DRO
Vice
