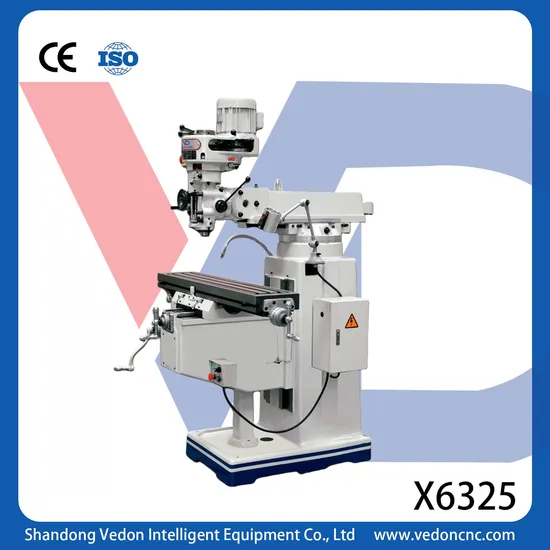

High Rigid X6325 Medium Duty Milling Machine 3 Axis Metal Universal Turret Milling Machine Swivel Head Milling Machine X6325 Vertical Milling Machine

Product Description

X6325 Product Description
Product Parameters

Specifications
Model	X6325	X6325A	X6325B
Table size	254×1270 (10"×50") 254×1370 (10"×54")
Table longitudinal travel	850mm 950mm
Cross travel	420mm	400mm	400mm
Vertical travel	420mm
T-slot Number/Width	3-16mm
Ram travel	470mm
Distance from spindle nose to table surface	0~405mm
Distance from spindle center to column	140~609mm
Spindle taper	standard: R8, optional: ISO30 / ISO40
Spindle travel	127mm
Spindle speed	50HZ: 65~4500rpm, 60HZ: 80~5440rpm
	optional: variable 65~4200rpm
Spindle feed	0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution
Spindle motor power	2.25KW / 3PH
Head swivel	90°
Head tilting	45°
one miller per case	1516×1550×2080mm
two miller per case	1650×1750×2170mm
three miller per case	1650×2285×2235mm
Machine weight	1550kg	1380kg	1420kg

Product Advantage

High Machining Accuracy: The drilling center from Suzhou Yonghang Machine Tool Equipment Co., Ltd. utilizes high-precision numerical control technology, resulting in exceptional positioning accuracy and repeated positioning accuracy. This enables the drilling and tapping center to complete drilling and tapping tasks quickly and accurately, reducing scrap and rework rates. Fast Cutting Speed: With a high spindle speed, the drilling center achieves high-speed cutting. This not only reduces cutting time and processing cycle but also enhances the finish of the machined surface. Linkage Function: The drilling and tapping center is equipped with a multi-axis linkage function, allowing it to drill and tap complex hole systems. This advanced machining method significantly improves processing efficiency and accuracy while reducing manual intervention and operation time. High Degree of Automation: Suzhou Yonghang's drilling and tapping centers are equipped with automatic loading and unloading systems, as well as automatic detection systems and other auxiliary equipment. This ensures the automation and intelligence of the processing process, leading to improved processing efficiency, reduced manual errors, and enhanced safety. Detailed Photos


Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd. is a comprehensive enterprise in China whois specialized in metal cutting machinery and tools, coming with selfimport and export rights. VEDONTOOLS supply a wide range of products and service to its global customers, including vertical machining center, milling machine, lathe, radial drilling machine CNClathe, HSS&TCT annular cutter, magneticdrill machine, diamond drill machine
etc... T
hey are widely soldto morethan 50 countries and areas in Europe, South America, and Asia, relying on the reliable product quality, reasonable price and good after-sales service system. VEDONTOOLS follows the concept ofcredit management cooperation and win-win strategy, and it has good comments from society and clients. Here we sincerely hope to cooperate with you and create a bright future.
FAQ

Q1.Could I put my LOGO on it or paint my own color?
A:Yes, As long as the order quantity reach to the MOQ.
Q2.What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3.Could I order trail small order?
A:Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4.What points need to be confirmed before placing the order?
A:Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
