Super-Above Truck Mounted Crane, 8 Ton Construction Machine Mobile

Product Description

Product Description
PRODUCT DESCRIPTIONS

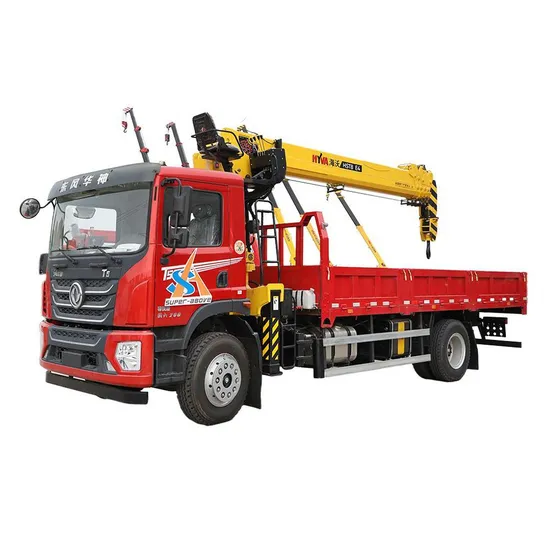

Super-above Truck-mounted crane
A truck-mounted crane is grouped together as a means of transport. By the boom, lifting torque, frame, legs and other
parts. Crane left and right operation can be both positive and negative 360-degree rotation, can also be full rotation.
Compared special crane trucks with crane, with a high speed, climbing ability characteristics. Enables fast movements,
efficiency, energy-saving.With a flexible, easy to operate, efficient, safe, and reliable.
A truck-mounted crane is grouped together as a means of transport. By the boom, lifting torque, frame, legs and other parts.
Crane left and right operation can be both positive and negative 360-degree rotation, can also be full rotation. Compared
special crane trucks with crane, with a high speed, climbing ability characteristics. Enables fast movements, efficiency,
energy-saving.With a flexible, easy to operate, efficient, safe, and reliable.
TECHNICAL PARAMETERS

Item	Unit	References
Max Lifting Moment	t*m	20
Max Lifting Capacity	kg	8000
Boom length	m	4.81~11.85
Max Lifting Height	m	13.2
Derick range	°	0~75°
Outrigger span	mm	2280~5580
Size(length×width×height)	mm	5140×2430×3260

1.Throttle Control System
Changing the form of the previous manipulation and throttle operation individually, the Realization of the bilateral
handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,
it can easily carry out the lifting work.
2.End position automatic hook device
Maximum savings in preparation time before and after the operation, to ensure that the customer's vehicle could be in a
driving state in the shortest time and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinter device
If a user is negligent or unfamiliar with the operation of lifting hooks, the hoisting overwinter device will stop hook-raise
in time, to prevent the safety of personnel and property caused by the fracture of wire rope.
4.Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving
and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5.Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting
operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.

---
