Rack and Pinion Style Passenger Cum Material Hoist Manufacturer

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
SC200GD
Application
Construction Elevator
Lift Mechanism
Rack&Pinion
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
Rack&Pinion
Running Mode
Stationary
Certification
CE, ISO 9001
Transport Package
Container Sea Freight Packing
Specification
40′Hq
Trademark
ANKA
Origin
China
HS Code
84289090
Production Capacity
300 Unit/Year

Product Description

Rack adn pinion style Passenger cum Material hoist

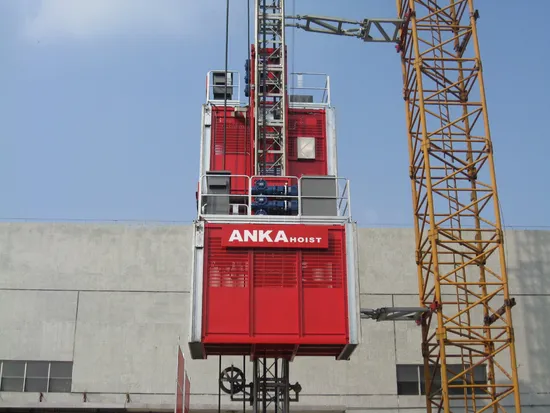

ANKA Passenger cum Material hoist
SC200GZ Single car lift
CAP. 2000KG
GALVANIZED MAST SECTION
SPEED:40M/MIN,
CABIN DIMENSION: 3.2*1.5*2.5/2.2M (L*W*H)
CUSTOMIZED DESIGN IS AVAILABLE.
ANKA provides a whole serial construction passenger cum material hoist in both single and twin cage to the customers, the capacity of cage ranges from 1000kg, 1200kg, 1500kg, 2000kg, 2700kg, to 3200kg, and with direct motor driven and frequency conversion driven to reach the speed of 36 m/min, 40 m/m, 63m/min and 96m/min, the maximum working height is up to 450 meters. And ANKA also provides the customized size of cage to satisfy the special demand from customers.
The electric components and the frequency converter for our PM hoist are from international famous brand, bearing from SKF, Terminators from Phoenix. ANKA also provide the Germany Nord / SEW motor and gearbox for our customer's specific requirement.
Model Capacity (kg) Lifting speed (m/min) Motor power (kw) Inverter power (kw)
SC200TD 2000 36 3 x 11 N
SC200GD 2000 0-40 3 X 11 37
SC200GZ 2000 0-63 3x18.5 55
SC270GZ 2700 0-63 3x18.5 75
SC200G 2000 0-96 3x22 90
SC270GS 2700 0-96 3x30 110
SC120/120GZ 2x1200 0-63 2x3x15 2x45
SC200/200GZ 2x2000 0-63 2x3x18.5 2x55
SC270/270GZ 2x2700 0-63 2x3x18.5 2x75
SC200/200G 2x2000 0-96 2x3x22 2x90
SC270/270GS 2x2700 0-96 2x3x30 2x110
