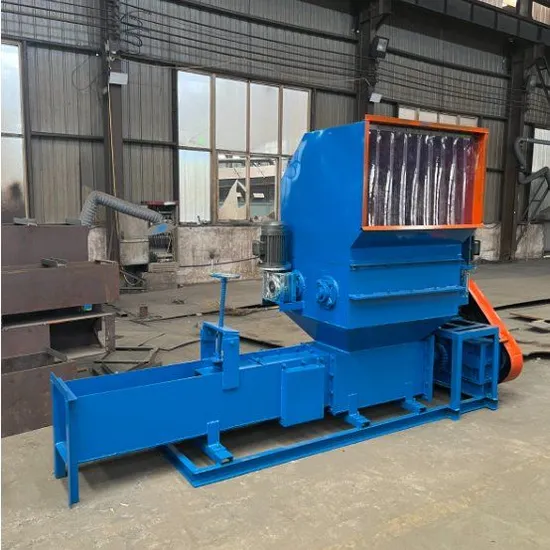

Premium Expanded Polystyrene EPS Crusher and Compactor Machine with Two Rotors

US$3,000.00-5,000.00 1 Set (MOQ)

Basic Info.

Model NO.
300
Material Processed
Foam
Plastic Type
EPS
Screw
Double-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
QS, ISO9001:2008, CE
Shafts Qty
2 PCS
Control Box
Yes
Pressing Plate
Adjustable
Reducer
Yes
Transport Package
Plywood Box
Specification
300/400
Trademark
Myaid
Origin
China
HS Code
8477800000
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
500.00cm * 150.00cm * 200.00cm
Package Gross Weight
1200.000kg

Product Description

EPS compactor can crush loose foam by two shafts in hopper and compact loose foam materials by screw at chamber into high density EPS polystyrene briquette.
* Two shredding shafts
* Hard teeth reducer
* Control box
* Shred and compact function
* Optional conveyor
The whole process is by physical compaction,so it is also named as cold compact machine.
The EPS compactor generates a pressure-compressed force to compress foam by the screw spiral rotation,then make the foam scrap into an EPS foam compression blocks. Our Greenland brand foam compressor machines, can reach max up to 50 times compression ratio, greatly reduce the storage and transportation costs of EPS foam, It is a good choice for EPS foam recycling.
Machine Application
Machine Advantage
Machine Parameter
Model 300 400
EPS Briquette Size 300*300mm 400*400mm
Total Power 21kw 28kw
Crushing Motor Power 3 kw*2 3 kw*2
Capacity 150 kg/h 250kg/h
EPS Compressing Ratio 50:1 50:1
Hopper Size 900*750 1000*750
Machine Size 3810*1048*2250 mm 3900*1100*2200mm
Machine Weight 1850kg 2200kg
Power Supply at Default 380V 3phase 50Hz 380V 3phase 50Hz

FAQ
Q: How to compact loose foam ? What is the parts to compact inside machine?
A: There is a screw to compress and convey the shredded foam materials in the chamber.
Q: Can it compact packaging foam box?
A: Yes.
Q: What is the benefit from the machine?
A: It can densify the big size loose foam materials into small size but big density briquette which is easy to transport.And EPS briquette can keep EPS physical characteristics well.
