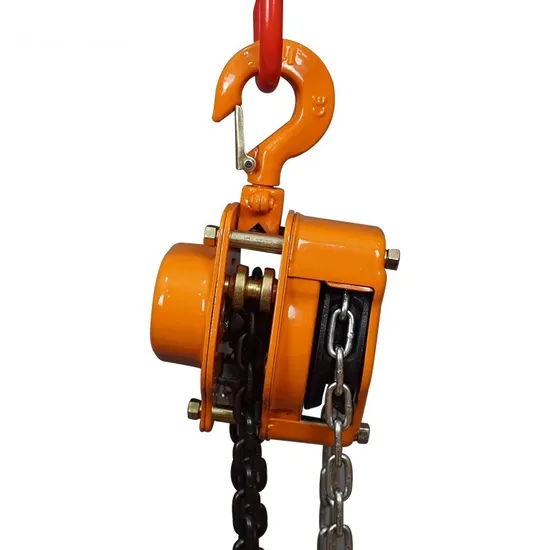

Lifting Tools Chain Pulley Block Hsz-Vt Type

Product Description

Production Details
PARAMEMER
HSZ-VT TYPE CHAIN HOIST

MODEL	VT-0.5	VT-1	VT-1.5	VT-2	VT-3	VT-5	VT-10	VT-20
CAPACITY(T)	0.5	1	1.5	2	3	5	10	20
STANDARD LIFT(M)	2.5	2.5	2.5	2.5	3	3	3	3
TEST LOAD(T)	0.75	1.25	1.875	2.5	3.75	6.25	12.5	25
DISTANCE BETWEEN HOOKS(MM)	270	270	368	444	466	616	700	1000
CHAIN PULL TO LIFT PULL LOAD(N)	225	309	343	314	343	383	392	392
NO.OF LOAD CHAIN FALL LINES	1	1	2	2	2	2	4	8
DIEMETER OF THE LOADING CHAIN(MM)	6	6	6	6	8	10	10	10

As a highly efficient and versatile hand-operated lifting appliance, it works well at heights, in narrow working place, fields, and in doing various angles of pulling. It features a lightweight and takes less strength to operate the chain block. Secure to use thanks to its scientific design, ensuring that you can lift safely and easily.
ADVANTAGES
·Security Hook Design
The secure hook is not only made of durable material but has a security latch and can rotate 360° without any limitation, which is easy to operate.
·High-Quality Chian
With a sturdy chain, chain hoists increase the using range; Blackened lifting chain and galvanized hand chain has a strong resistance to corrosion and wear.
·Reliable Operation
Premium brake makes the chain fall more stable and greatly ensures your security during operation. Quality gears help accurately control and reduce the need for maintenance and repair.
·Wide Application
This manual hoist can be used in most industrial areas. It can be widely used to install machines, lifting goods, and dragging loads in transport, workshops, and so on.
In addition to these chain hoist, other related to lifting and rigging products can be found as below:
https://liftingsling-tiedown.en.made-in-china.com/product-list-1.html
Packing Logistics
About package, all products are usually adopted to exporting standard.
If you have any specific requirements, to be negociated.
Our Clients
Our Advantages
Hebei Jili Rigging Co., LTD build up in 2005, our company is a professional manufacturer specializing in the production of rigging and lifting equipments. We offter a wide range of high-quality products, including lifting slings, tie down straps, lifting hooks and other rigging equipments and parts, etc.Jili Rigging own hign quality production technology and management team, the product passed the CE,GS product quality and safety certification.Our products are sold in more than 30 domestic provinces, cities and 100 regions, such as the Middle East, the European Union, Southeast Asia, North and South American etc. More than 50 countires and regions.

---
