US$6,000.00-6,500.00
|
1 Set
(MOQ)
|
Basic Info.
Type
PE Film Blowing Machine
Maximum Folding Width of Film
600mm
Computerized
Non-Computerized
Certification
CE, ISO9001:2008
Output Capacity
30-50kg/Hr
Transport Package
Plastic Film
Specification
2500x2300x3500mm
Production Capacity
300sets/Year
Packaging & Delivery
Package Size
700.00cm * 700.00cm * 560.00cm
Package Gross Weight
1000.000kg
Product Description
the Mini type film blowing machines offer several advantages over other types of film blowing machines, especially for businesses that require a low-volume production of plastic films. Compare to normal film blowing machine,it has following advantage:
Compact size: Mini type film blowing extruder are designed to be smaller and more compact than other film blowing machines, which makes them easy to install and use in smaller spaces. They can be easily moved around and stored, which is especially useful for businesses with limited space.
Low energy consumption: Mini type blown film machine consume less energy than larger machines, which can lead to significant cost savings over time. They are also environmentally friendly and reduce carbon emissions, making them a sustainable choice for businesses.
User-friendly operation: Mini type film extruder are easy to operate, and they require minimal training to use. They typically come with intuitive control panels, which allow operators to adjust the temperature, speed, and other settings with ease.
Versatility: Despite their smaller size, mini type film blowing machines can produce a wide range of plastic films, sheets, and bags. They can handle various materials, including LDPE, HDPE, LLDPE, and produce films with different thicknesses and widths.
So this machine is a good choice for customer who has limited factory space
Here is the machine specifications for reference.
| Model | XG-MNA50 |
| Suitable material | LDPE, HDPE, LLDPE mix or alone |
| Film width | 100-500mm |
| Film thickness | 0.006mm-0.10mm(if you have special request please clarify) |
| Max.Output capacity(kg/hr) | 40kg/hr for HDPE 50kg/hr for LDPE |
| Screw diameter(mm) | 50mm |
| Screw L/D Ratio: | 30:1-32:1 |
| Driving motor(kw) | 15 |
| Screw material | Full bimetallic |
| Barrel material | 38CRMOALA |
| Cylinder cooling | 250wx2 |
| Temperature control(zone) | 5 |
| Die head size(mm) | 60/80mm |
| Air blower(kw) | 2.2 |
| Roller width(mm) | 600 |
| Take up speed(m/min) | 10-80 |
| Take up motor(kw) | 1.5 |
| Winding motor(N/M) | 6 |
| Winding speed(m/min) | 10-60 |
Production procedure
Sample film

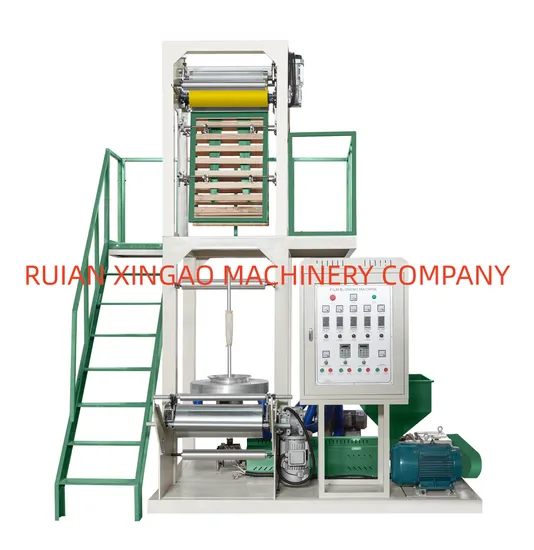

Machine outlook
Machine rewinding part
Machine take up unit
Machine extruder part
Machine package and shipment
Our service Team
Factory layout
