Basic Info.
Cutter Material
Hard Alloy
Application
Mines, Quarries
Crushing Stage
Primary Crusher
Close Side Setting
95-240 mm
Finished Surface
Outer Surface Process
Tongs′ Features
Adjustable Tongs
Transport Package
Standard Export Package
Specification
PE 900*1200
Production Capacity
2sets Per Month
Product Description

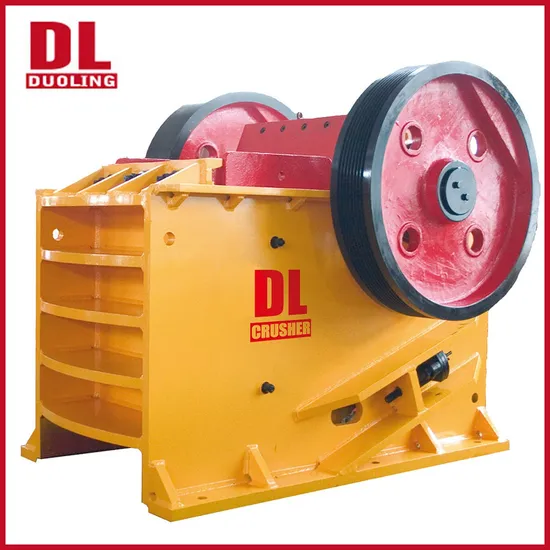

Duoling PE 900 X 1200 Jaw Crusher for Aggregates Mining and Quarrying
Application of PE Series Jaw Crusher
Primary Crushing
Mining, Aggregate, Metallurgy, Industrial, Construction, Environmental.
Introduction of PE Series Jaw Crusher
The PE series jaw crushers manufactured by our company are designed for using in mines, quarries and other industrial applications, on the base of previous experience of sales at home and abroad assuring good reliability and high productivity. The size range of feed material (Maximum compression strength 300Mpa) is from 21 to 1200mm. They are the optimum equipment as primary jaw crushers.
Specifications of PE Series Jaw Crusher
| Model | Feed Opening(mm) | Close Size Setting (mm) | Capacity (tph) | Power (kw) | Weight (ton) |
| Width | Length |
| PE-500x750 | 500 | 750 | 50-120 | 50-150 | 55 | 11.2 |
| PE-600x900 | 600 | 900 | 75-180 | 65-190 | 75 | 17.2 |
| PE-800x1100 | 800 | 1100 | 90-220 | 140-320 | 110-132 | 29.6 |
| PE-900x1200 | 900 | 1200 | 95-240 | 160-450 | 132-160 | 45.8 |
| PE-1200x1500 | 1200 | 1500 | 150-300 | 430-880 | 160-250 | 79.4 |
| PE1400x1800 | 1400 | 1800 | 185-300 | 500-1100 | 250-315 | 120 |
Working Principle
The motor transmits through belt,driving the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.
The angle between toggle plate and moving jaw plate increases when mobile jaw moves.So the mobile jaw moves towards the fixed jaw.
The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,
The moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
Structural Drawing
Working Principle of PE Series Jaw Crusher
The motor transmits through belt,driving the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle
plate and moving jaw plate increases when mobile jaw moves.So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
PE Series Jaw Crusher at Workshop
Duoling PE Series Jaw Crusher at site
>>
