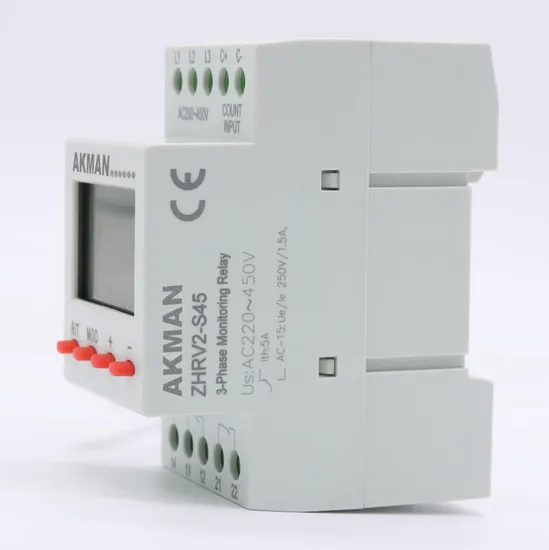

Timing Counting Function Voltage Relay Phase Sequence Protection

US$16.45-18.21 100 Pieces (MOQ)

Basic Info.

Model NO.
ZHRV2-45
Phase
3
Electricity Type
Ac
Load
Micro Power Relay
Protective Characteristics
Enclosed Relay
Action Principle
Electronic Type
Size
Miniature
Type
Voltage Relay
Rated Frequency
50/60Hz
Rated Supply Voltage
AC220V~450V (3-Phase 3-Wire)
Phase Failure and Phase Sequence
<0.5s
Contact Configuration Capacity(a)
10A
Short Circuit Protector Type
Nt00-6A
Output Type
1c/O+1nc
Contact Capacity
Ue/Le:240V/1.5A,415V/0.95A
Net Weight
200g
DIN Rail Standard
Width 35mm
Transport Package
Standard Packing
Specification
80*44*65mm
Trademark
AKMAN
Origin
Zhejiang China
HS Code
8536490000
Production Capacity
10000PCS/Week

Product Description


Applications
Used in air conditioning units,elevator machine room,pumps,fans and other motor control applications,as protection of over-volltage.under voltage,phase failure,phase sequence and phase unbalance. When the power supply is abnormal,turn off power supply to protect the equipment.

Features:
Built-in microprocessors,true RMS voltage measurement,voltage measurement acduracy ≤1%.Measuring frequency 45Hz~64Hz,button setting,LCD display voltage and fault information,protection can be rurned on or off.Check phase voltage balue by button,with N-phase phase failureprotection,DIN rail mounting.
