Ball Mill, Mining Ball Mill, Industrial Small Ball Mill

US$2,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
zc-cmt001
Type
Stone Grinding Machine
Control
Artificial
Automation
Automatic
Precision
Precision
Application
Ceramics, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Type for Grinding Machine
Special Grinding Machine
Grinding Method
Dry Grind
Certification
ISO, CE
Condition
New
Transport Package
Loose Packing with Pallet or Woden Box
Specification
customized
Trademark
Zhongci
Origin
Pingxiang
HS Code
8474202000
Production Capacity
10000ton/Year

Packaging & Delivery

Package Size
2000.00cm * 1000.00cm * 500.00cm
Package Gross Weight
2000.000kg

Product Description

Product Description

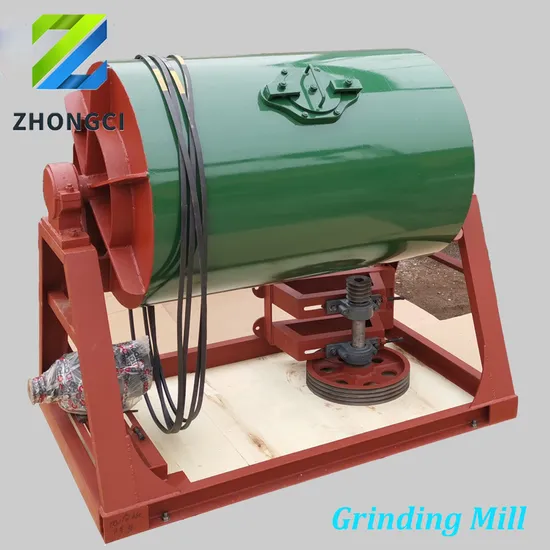

Ball mill, mining ball mill, industrial small ball mill

Horizontal ball mill, laboratory ball mill, intermittent ball mill
Product Introduction: The horizontal ball mill produced by our company has strong adaptability, wide applications, reliable and stable performance, and long service life
Belonging to high-end grinding equipment with low energy consumption, high output, simple operation, and convenient use.
Working principle: The output shaft of the reducer directly drives the ball mill cylinder to rotate through the coupling. The high-speed rotating cylinder suspends the grinding ball and material in the liquid inside the cylinder, and the grinding ball quickly grinds the material.
Performance characteristics: Different grinding media are selected according to different materials. The mixing drum can also be processed into carbon steel, stainless steel, or lined with wear-resistant polyurethane or alumina to ensure material purity. Low power consumption, no vibration troubles, wide product particle size distribution, high crushing efficiency, suitable for ultrafine grinding of liquid-solid phase materials, especially suitable for processing high-purity materials. It can be widely used in industries such as electronic materials, magnetic materials, ceramic glazes, enamel glazes, rare earths, diatomaceous earth, ink pigments, food, pharmaceuticals, etc.
This device has been continuously improved by our company for many years, with mature technology that saves energy and increases efficiency, and has received high praise from a wide range of users.
Product Parameters
Main technological parameters of ball mill
Specification
Cylinder size
(mm)
Output size
(mm)
Weight of loading
(t)
Speed of bucket
(r/min)
Power
(kw)
Piece Weight
(kg)
0.2T
Φ910×1120
0.075-0.89
0.2
35
2.2
1910
0.5T
Φ1200×1420
0.075-0.4
0.5
31.45
4
2500
1T
Φ1400×1800
0.075-0.4
1
27
7.5
3000
1.5T
Φ1800×2100
0.075-0.4
1.5
23
11
4500
2.5T
Φ2200×2200
0.075-0.4
2.5
20
18.5
6500
3T
Φ2200×2600
0.075-0.4
3
20
22
7000
5T
Φ2500×3000
0.047-0.4
5
16
37
13000
8T
Φ2800×3400
0.047-0.4
8
13.8
45
19000
10T
Φ2800×4000
0.047-0.4
10
13.8
55
20000
15T
Φ3000×5000
0.047-0.4
15
13
75
28000
18T
Φ3100×5000
0.047-0.4
18
12
90
28500
20T
Φ3200×5800
0.047-0.4
20
13
90
29900
30T
Φ3400×6500
0.047-0.4
30
14.2
110
32000
40T
Φ3600×7000
0.047-0.4
40
13
132
36000
50T
Φ3800×8000
0.047-0.4
50
11
200
45000
60T
Φ4000×8500
0.047-0.4
60
10
200
52000

Application

Application:
Batch Ball Mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc. It is used for grinding various ore and other grindable materials dry or wet.
