Basic Info.
Transport Package
Fumigated Wooden Case
Production Capacity
20 Sets/Month
Product Description

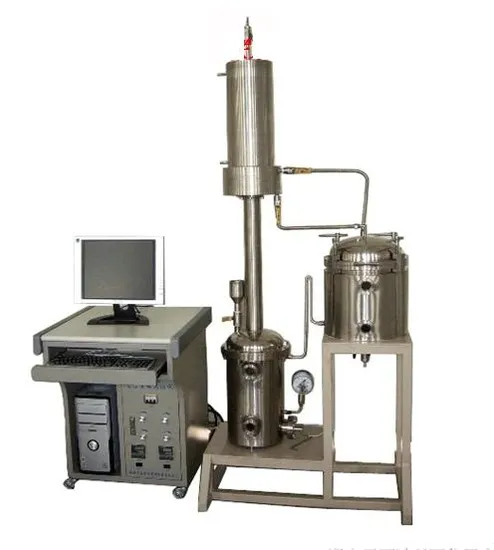

New type Multi-function Core Displacement Experiment Device
This device is mainly for displacement experiments, such as water displacement, chemical flooding, miscible displacement, miscible pressure, CO2 displacement, N2 displacement, natural gas flooding etc.In Oil and gas field development disciplines and research for recovery improvement.The device combined with modern automatic control concepts and humanized structure design and widely used by many oil research institutes.
Main parameters:
| Injection pressure | 40Mpa |
| Accuracy | 0.2F·S8226S |
| Flow | 0.001ml/min |
| Hi-pressure Mid-container | 1000ml/50Mpa |
| Low-pressure storage vessel | 1000/0.5Mpa |
| Simulated constant temperature environment | 180ºC |
| Temperature control accuracy | ±1ºC |
| Core holder model | Φ25X80mm |
| Pressure | 32Mpa |
| Temperature | 180ºC |
| Size | 45X45X300mm |
| Sand feeding model | Φ25X1000mm |
| Pressure | 40Mpa |
| Vacuum pump | 2XZ-25X10-2PA |
| Vacuum buffer | ZR-5 600ml |
| Vacuum dryer | ZR-5 600ml |
| Manual pump | JB-3 50Mpa 210ml |
| Back-pressure buffer | ZR-2 500ml/32Mpa |
| Recycle pressure tracker | D-250L 80Mpa 0.8L/Min. |
| Pneumatic valve | CV210 70Mpa |
| Storage vessel | ZR-5 3000ml |
New type Multi-function Core Displacement Experiment Device
This device is mainly for displacement experiments, such as water displacement, chemical flooding, miscible displacement, miscible pressure, CO2 displacement, N2 displacement, natural gas flooding etc.In Oil and gas field development disciplines and research for recovery improvement.The device combined with modern automatic control concepts and humanized structure design and widely used by many oil research institutes.
Main parameters:
>>
