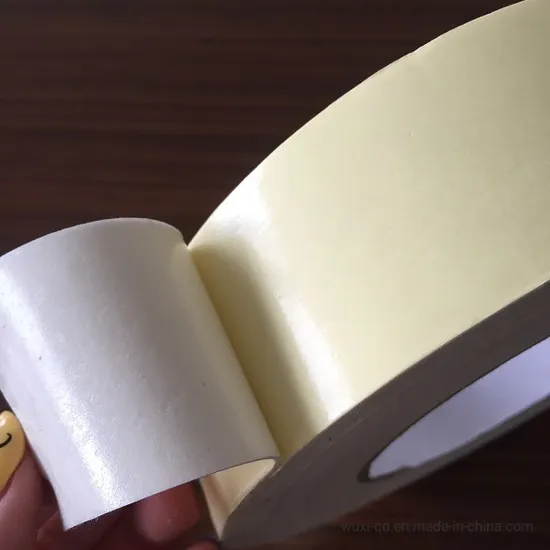

White Double Sided Foam Tape

Product Description

Produce Process
Double Sided Tape(QD201312EVA)
1)Features
1.Coating black foam with Acrylic adhesive on both sides.
2.Suit to metal ,PP ,PE,EVA and so on.
3.Can be used in a wide temperature rage.
4.Good ability of surface resistance and ageing resistance.

2)Constitute
1. Double sided blue release film.
2.AM0900 adhesive.
3.1.1mm EVA foam.

Name	Adhesive	Thickness(mm)	Width and Length
QD201312EVA	Acrylic	1.3	Clients' requirements

3)Usage
1.Can be used in car industry, all kinds of household appliances, electronic devices and so on.
2.Can be used as insulation material.
3. Can be used in environmental protection, Architectural decoration.
4.Can be used in daily life.

4)Performance Index

Item	Test Value	Test Method
Adhesive Strength (g/20mm)	1980	23ºC,65%RH,stick 20mm tape on the stainless steel plate for 20min,then peel <180°.
Retention (mm)	0.1	40ºC,stick 20mm*20mm tape on the stainless steel plate, hang with 1kg load, then measure the Glue line creep variable after 60min
Intial Stick Force (J.DOW)	25	23ºC,65%RH J.DOW
Set Load Stripping (mm)	7	80ºC,stick 20mm*50mm tape on the stainless steel plate, hang with 1kg load, then measure T type strip distance after 60min.

5) Storage
The optimum Storage temperature:5~30ºC
Quality assurance:6 month from product purchase.
Can't guarantee 6 month expiry date if exposure to the sunshine ,high temperature(≥40ºC), high humidity(≥70%RH) or low temperature(≤0ºC).

---
