High-Performance 200 Ton Plastic Moulding Machine for Bottles

Product Description

Products Description
High-efficiency mixing PET screw with ceramic heater highly increase the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also lowers the shrinkage of preform, while achieves better transparency.

With pin valve interface, special pine valve control system. more process adjustment.
S6 Servo motor
With the adoption of servo control system, the injection pressure & speed 15 under closed loop controlled, and the stability and repeatability can be achieved.
V6 Variable Pump
Perfect combination between computer and high efficient proportional plunger variable pump saves electricity by 25%-50%. The economic efficiency is high.

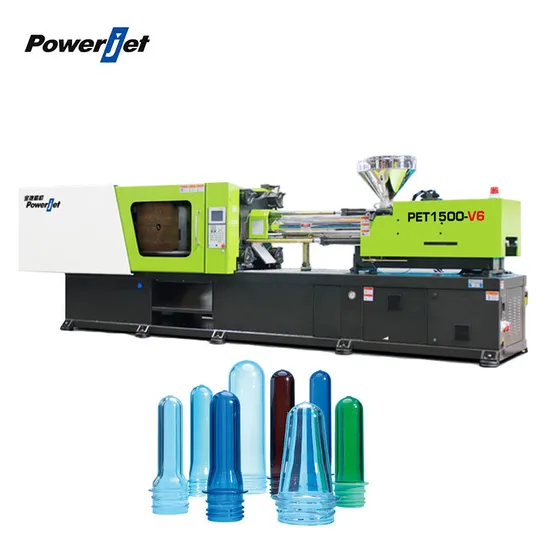

Powerjet PET series
At present, PET is widely used in container packaging of beverages, purified water, candy, biscuits, edible oils, cosmetics, pharmaceuticals and cleaning products. Powerjet PET series preform injection molding machine combines advanced technology at home and abroad, and has the advantages of energy saving, environmental protection, stability, reliability and high precision. The machine has complete specifications and is suitable for a variety of different preforms; it is extremely cost-effective and can create a better return on investment and an better experience for customers !
Product Paramenters

ITEM	DESCRIPTION	UNIT	PET1500-V6/S6
			International size rating		2880-1440
INJECTION UNIT	Screw diameter	mm	75
		Shot volume	cm3	1303
		Shot weight(PET)	g	1516
		Screw stroke	mm	295
CLAMPING UNIT	Clamping force	KN	2880
		Opening stroke	mm	550
		Max.daylight	mm	1160
		Space between bars	mm*mm	610*610
		Movable platen size	mm*mm	850*850
		Max.mold height	mm	610
		Min.mold height	mm	280
		Ejector stroke	mm	175
		Ejector force	KN	111
		Ejector force	KN	77
		Number of ejector pins		4+1
POWER UNIT	Hydraulic system pressure	Mpa	17.5
		Pump motor power	KW	30
		Heater power	KW	20
		Total current	A	147.5/171
GENERAL	Oil tank capacity	L	560
		Machine weight	Ton	8.8
		Machine dimensions(L*W*H)	m*m*m	6.5*1.53*2.2

Company Profile

POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services. Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine

Please feel free to consult us to know more information. Thanks~

---
