US$2.00-3.50
|
100 Pieces
(MOQ)
|
Basic Info.
Application
Social Security Card, Community Card, Hotel Card, Enterprise Card, Traffic Card, Supermarket Card, Campus Card, Smartcard Application
Name

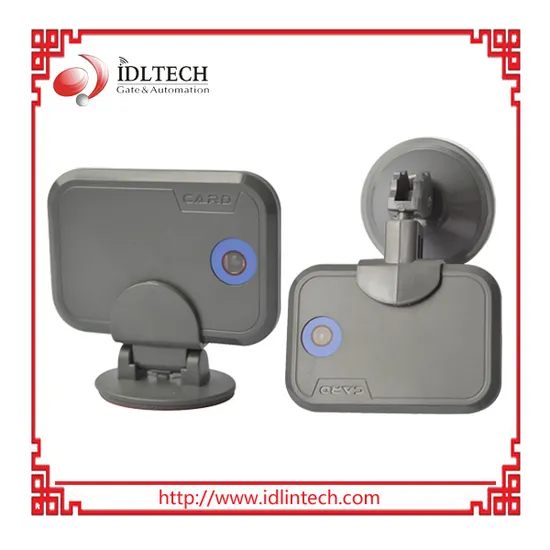

Long Range RFID Card for Parking System
Identification Distance
up to 30m
Standby Current
Less Than 8ua
Working Voltage
2.5 ~ +3.6V DC
Power Consumption
≤3milliwatt
Identification Angle
80 Degree From Reader′s Frontage
Communication Encryption
Based on Bluetooth Encryption Algorithm
Transport Package
Standard Neutral Package or Customers Requirement
Production Capacity
50000PCS/Month
Product Description
Up to 20m reading; Standby when out of reading area; Strong signal penetration; Fast and reliable identification; Windshield mounted and easy installation.
It is a highly affordable long range RFID card/ RFID tag/ RFID Transponder that can penetrate most vehicle solar film to truly offer maximum distance hands free parking access.
Main Features
1) User-friendly design, easy to carry. Customers can choose sucker-mounted or deck structure according to usage
2)Micro-power processing and the batteries can be used for 2 year under normal circumstance
3)Super anti-light processing and the card can read up to 15 meters under burning sun
4) Compatible Card, card No can be same with EM or Mifare card No(need to be ordered)
5)The structure parts adopt heat-resistant and anti-aging materials
Technical Parameters
Identification Distance: Up to 30m
Sending Frequency: 433MHZ
Receiving Channel: 38K
Standby Current: Less than 8μ A
Working Voltage: 2.5 ~ +3.6V DC
Power Consumption: ≤ 3milliwatt
Identification Angle: 80 degree from reader's frontage
Communication Encryption: Based on Bluetooth encryption algorithm
Battery Standard: 1 pcs of CR2450/3V button cell batteries
Dimension: 60*32*10 MM
Colour: Grey
Product Application
Intelligent Parking Management System;
All-in-one Card Access Control System;
Non-stop Vehicle Counting System;
Non-stop Bus Attendance System;
Electronic Road Driving Test System, etc.
For more applications, please consult us.
Why Choose Our RFID Card/RFID Tag/RFID Transponder?
1) Enjoy the convenient of handsfree - no need stop to flash card.
2) No more getting hand wet during rainy days or expose to robbery threat when winding down windows to flash card.
3) Reduce congestion of long car queue during peak hours.
4) Add premium prestige reputation to your residential or commercial building.
Installation - RFID Tags/RFID Cards/RFID Transponders
Absorb the RFID card holder to the appropriate position at back of the rear-view mirror and then insert the card. Please put the card active window towards the reader.
Technical Parameters
| Identification Distance | Up to 30m |
| Sending Frequency | 433MHZ |
| Receiving Channel | 38K |
| Standby Current | less than 8μA |
| Working Voltage | 2.5 ~ +3.6V DC |
| Power Consumption | ≤3milliwatt |
| Identification Angle | 80 degree from reader's frontage |
| Communication Encryption | Based on Bluetooth encryption algorithm |
| Battery Standard | 1 pcs of CR2450/3V button cell batteries |
| Dimension | 60*32*10 MM |
| Colour | Grey |
>>
