Basic Info.
Machine Bed
Heavy Machine Bed with More Support
Spindle
9kw Atc Air Cooling Spdinle
Worktable
Vacuum Worktable
Motor
1500W Pure Servo Motor
Reducer
Japan Shimpo Reducer
Control System
Shanlong (English, Spainsh, Russian...)
Machine Voltage
1 Phase /3 Phase
Software
Artcam + Post Processor
Transport Package
LCL/FCL Plywood Package
Production Capacity
300sets/Month
Product Description

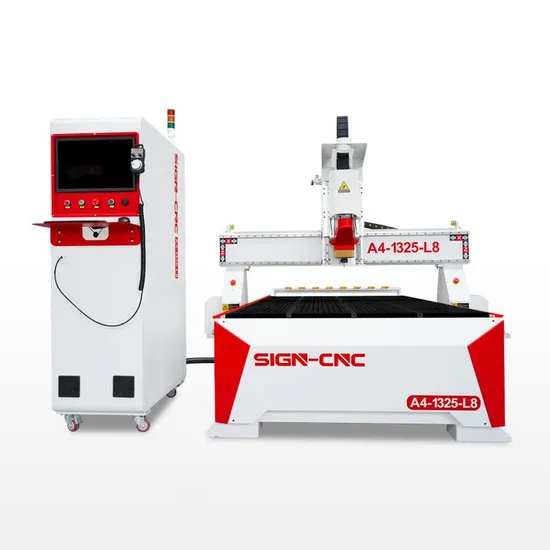

On Sale SIGN ATC 1325/2030 Wood Cutting/Engraving/Craving Machine CNC Router For Furniture Processing Factory
Product Description
Machine features:
A4 series Economical ATC CNC Router with AC servo motor and linear automatic 8 tools changer, which can meet the needs of complex 3D process processing. Basic configuration, affordable price, high cost-effectiveness.
CNC router can be used to produce items such as door carvings, interior and exterior decorations, wood panels, sign boards, wooden frames, moldings, musical instruments, furniture.
Product Parameters
| Model | A4-1325 / 1530 / 2030 /2040 -E |
| X, Y Working Size | 1300*2500mm / 1500*3000mm / 2000*3000mm /2000*4000mm |
| Z-axis Height | 280mm |
| Table Surface | Vacuum table |
| X, Y Structure | Helical rack and High precision 25mm square guide rail |
| Z Structure | High precision 25mm square guide rail and ball screw |
| Max. Power Consumption | (Without spindle) 2.0KW |
| Max. Rapid Travel Rate | 35m/min |
| Max. Working Speed | 20m/min |
| Spindle Power | HQD 9KW ATC air-cooled ER32 spindle |
| Spindle Speed | 0-24000RPM |
| Inverter | Folinn high frequency 11KW Inverter |
| Drive Motors | 1500W pure servo motors |
| Reducer | Japanese Shimpo planetary reducer |
| Pump | 5.5KW air cooling pump (7.5KW available) |
| Working Voltage | AC380V/50/60Hz |
| Command Language | G code |
| Control System | Shanlong control system (English, Español,Русский, Português,Vietnamese) |
| Tool sensor | Adjust the distance from the tool to the materials |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| X,Y Resolution | <0.03mm |
| Software | Artcam with post processor |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
Detailed Photos
Samples
Packaging & Shipping
Company Profile
To ensure the overall high quality of machine,all accessories are selected from the original first-line brands,our experienced team strictly follows the drawings for assembly, at least 3 comprehensive tests and support third-party inspection.
Customer feedback
FAQ
Q: What is the warranty:
A:Two years guarantee of the whole machine,one year for electrical components
- For hardware issue, fail parts (excluding the consumables)shall be replaced/repaired free of charge during the warranty period.
-For software issue, provide the operation manual or video for guiding, our technician is able to teach you online to run the machine or eliminate the fault for free.
Q: How do I choose CNC router model?
A: Just let us know your working demands, suitable models will be recommended. We have MTC CNC router, ATC woodworking center, pneumatic tool changer CNC router, multi-head CNC router, foam machining center, 4-Axis/5-Axis ATC CNC router and various types of woodworking machines.
>>
