Basic Info.
Customized
Non-Customized
Certification
ISO9001, GB
Type
Low Temperature Storage & Transportation Equipment
Customize
Could Be Customized
Max. Working Pressure
0.09MPa
Pressure Gauge Range
0~0.25MPa
1st Safety Valve Open Pressure
0.099MPa
2ND Safety Valve Open Pressure
0.15MPa
Transport Package
Wooden Box
Production Capacity
500sets/Month
Product Description

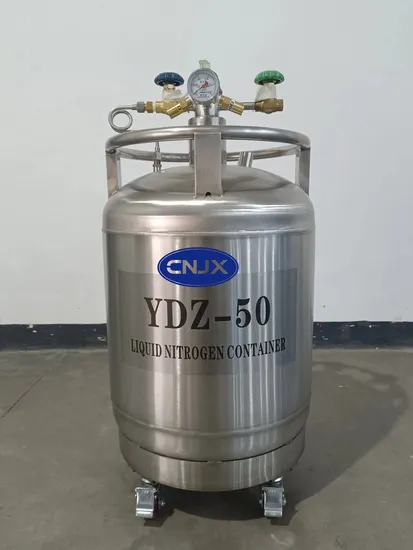

Product Description YDZ series automatic pressure increasing cryogenic containers are made of high quality stainless steel, which equipped with booster system.The booster system itself produce pressure to discharge liquid continuously. YDZ is made up of control system and tank. The control system mainly includes liquid inlet and outlet valve, pressure increasing valve, air release valve, double-safety valve, liquid level gauge and pressure gauge. Product Application *Widely used supplementary and transportation of liquid nitrogen, liquid oxygen and liquid argon containers *Together with the devices of laboratory and electronic instruments Product Main Characteristics 1.YDZ series are equipped with double safety auto-control valves and double protective measure, which are safer to use. 2.This kind of products has the feature of increasing pressure and draining the liquid continuously, which helps to effectively fill the liquid. 3.The movable wheels with high carrying capacitymake it easily moves. 4.The special ultra-low temperature cut-off valves are easier to operate.They are durable and elegant. Detailed Photos
Product Parameters
| Model | Volume(L) | Effective volume(L) | Size(Dia*H) | Empty weight (Kg) | Working pressure (Mpa) | Daily steam loss rate(%) | Infusion volume (L/Min) |
| YDZ-15 | 16.5 | 15 | 377×650 | 22 | <0.1 | ≤7 | ≥2 |
| YDZ-30 | 31.5 | 30 | 455×980 | 35 | <0.1 | ≤3 | ≥2 |
| YDZ-50 | 55 | 50 | 455×1180 | 45 | <0.1 | ≤2.2 | ≥4 |
| YDZ-100 | 110 | 100 | 606×1300 | 78 | <0.1 | ≤1.4 | ≥6 |
| YDZ-150 | 165 | 150 | 706×1340 | 108 | <0.1 | ≤1.3 | ≥8 |
| YDZ-175 | 185 | 175 | 706×1370 | 110 | <0.1 | ≤1.2 | ≥8 |
| YDZ-200 | 220 | 200 | 706×1450 | 112 | <0.1 | ≤1.1 | ≥8 |
| YDZ-250 | 275 | 250 | 756×1470 | 148 | <0.1 | ≤1.1 | ≥10 |
| YDZ-300 | 330 | 300 | 806×1490 | 190 | <0.1 | ≤1.1 | ≥10 |
| YDZ-400 | 440 | 400 | 908×1540 | 240 | <0.1 | ≤1.1 | ≥12 |
| YDZ-500 | 550 | 500 | 1008×1600 | 280 | <0.1 | ≤1.1 | ≥12 |
| YDZ-600 | 660 | 600 | 1058×1620 | 385 | <0.1 | ≤1.1 | ≥15 |
| YDZ-800 | 880 | 800 | 1160×1720 | 520 | <0.1 | ≤1.0 | ≥15 |
| YDZ-1000 | 1050 | 1000 | 1210×1970 | 650 | <0.1 | ≤1.0 | ≥15 |
| YDZ-2000 | 2100 | 2000 | 1512×2470 | 1125 | <0.1 | ≤0.9 | ≥20 |
